High Flow Filter Cartridge - YTHF162

The High Flow Filter Cartridge - YTHF162 produced by JinJue features a long lifespan, high flow rate, and high dirt-holding capacity. It is widely used in industries such as pure water, power plants, municipal wastewater, food, and biopharmaceuticals. With broad chemical compatibility and low operational difficulty, it is highly praised in the market.

Send Inquiry

Product Description

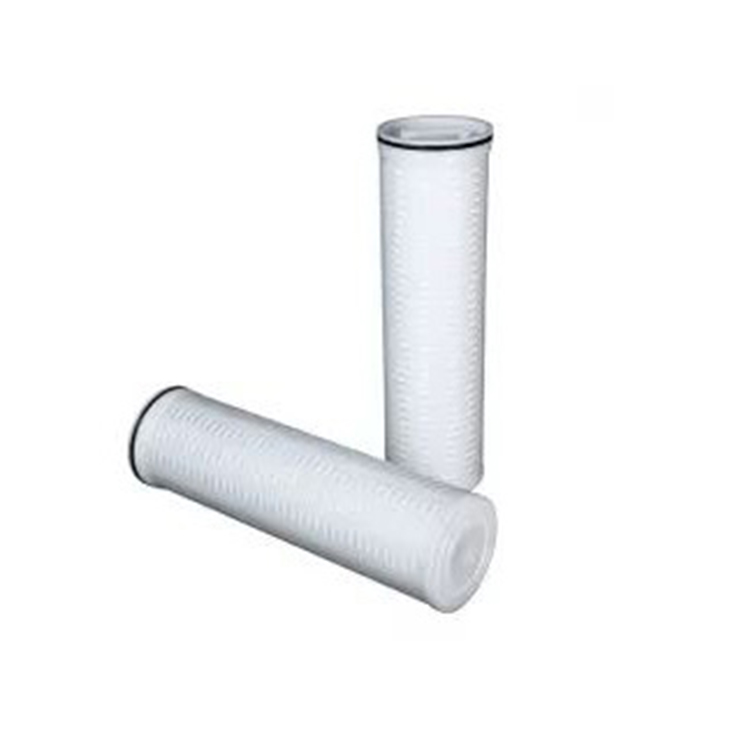

The High Flow Filter Cartridge - YTHF162 produced by JinJue uses a polypropylene filter housing with high strength and pressure resistance, effectively intercepting large particles. It contains a polypropylene membrane, providing multi-layer filtration for safer and cleaner results. The pore size can be customized according to customer requirements, making it a comprehensive replacement for traditional filter cartridges.

Detailed information of High Flow Filter Cartridge - YTHF162:

Cartridge structure Length 20 inches (508 mm), 40 inches (1016 mm), 60 inches (1524 mm)
Filter material Polypropylene
Micron 1um,5um,10um
OD 6.3 inches (160mm)
ID 3.5 inches (89mm)
Inner support、end cap、shell PP
Seal ring material Silicone,Viton,EPDM,PTFE
Working situation Max.operating temperature 80℃
Max. working pressure drop 0.42Mpa
Maximum replacement pressure difference 0.2 MPa

Customization range:

The pore size ranges from 1 micron to 100 microns, with available sizes including 10 inches, 20 inches, 30 inches, 40 inches, and 60 inches.

Product Feature:

1. Corrosion-resistant material
2. Layered filtration
3. Long lifespan
4. Supports wholesale

High Flow Filter Cartridge - YTHF162 Application

1. Common uses: pre-filtration of RO reverse osmosis system
2. Chemical/petrochemical industry: various acids, bases, solvents, quench water, brine and other chemical agents
3. Power Plant: Supplementary Water, Condensate Water, Stator Cooling Water, etc.
4. General industry: various process fluids, process water, condensate, cooling water, wastewater treatment, etc.
5. Microelectronics industry: deionized water pre-filtration
6. Food and beverage industry: process water, etc.
