High Flow Filter Cartridge - YTHF

JINJUE High Flow Filter Cartridge - YTHF features a large filtration area, high strength, dimensional stability, and low risk of leakage. With its high contaminant holding capacity, the cartridge extends service life. It is primarily suited for industrial applications.

Send Inquiry

Product Description

The High Flow Filter Cartridge - YTHF features a horizontal pleat design, increasing the filtration area and reducing pressure drop, ensuring a longer service life. It uses ultra-fine polypropylene fiber membranes with multi-layer pore filtration, capable of filtering out fine particles. The pore size ranges from 1 µm to 100 µm, meeting various filtration levels, and the filter also supports customization.

Detailed information

Outer diameter	6 inch (152 mm)
Length	20 inch (528 mm)/ 40 inch (1022 mm)/ 60 inch (1538 mm)
Filter Material	Pleated Glass Fiber, Deep Polypropylene (PP)
Support/diversion layer	polypropylene
End cap	glass fiber reinforced polypropylene
O-ring sealing material	ethylene-propylene rubber, nitrile-butadiene rubber
Filtration accuracy	1um, 5um, 6um, 10 um, 20 um, 40 um, 70 um, 100 um, etc.
Maximum operating temperature	pleated glass fiber: 121 C; pleated polypropylene: 82 C
Maximum pressure drop	pleated glass fiber: 3.4Bar, 121 C; pleated polypropylene: 3.4bar, 82 C;
Recommended pressure drop for replacement of filter element	2.4 bar, 20 C

High Flow Filter Cartridge - YTHF Product Advantages：

1. High filtration flow rate, with a maximum flow rate of up to 70 m³/h.
2. High filtration efficiency, with an effective filtration efficiency of up to 99%.
3. Fewer filter cartridge replacements required.
4. U-shaped sealing groove reduces the risk of leakage.

Application：

1.Filtration of condensed water in power plants
2.Filtration of raw materials, solvents and water in bio-pharmaceutical industry
3.Microelectronics, Films, Fibers, Resins

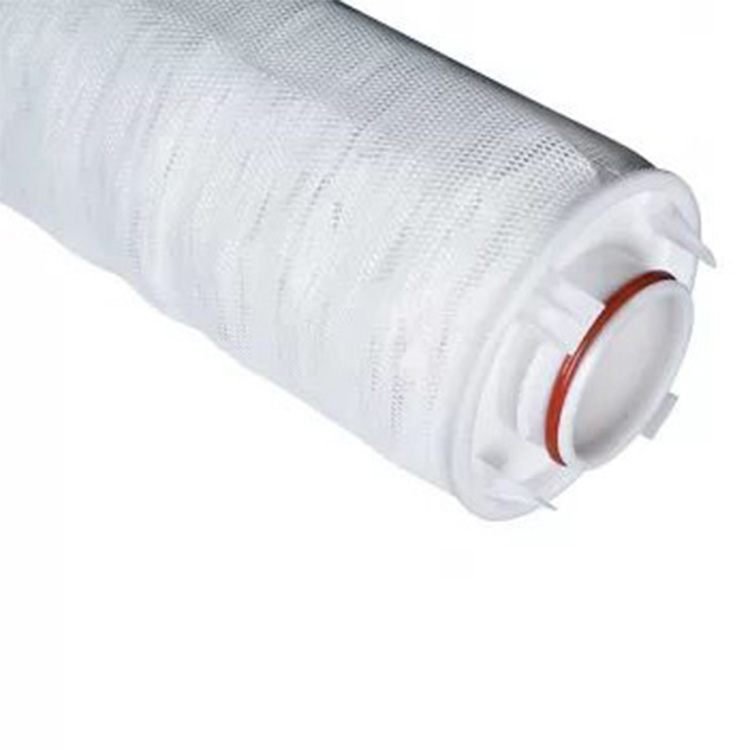

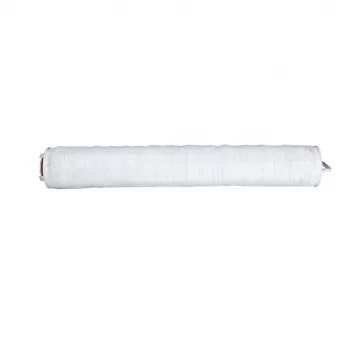

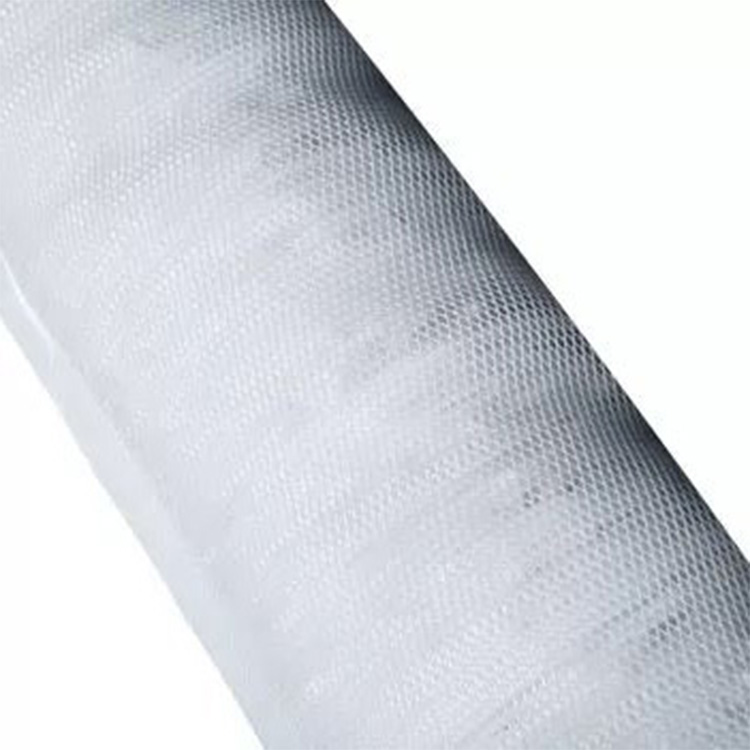

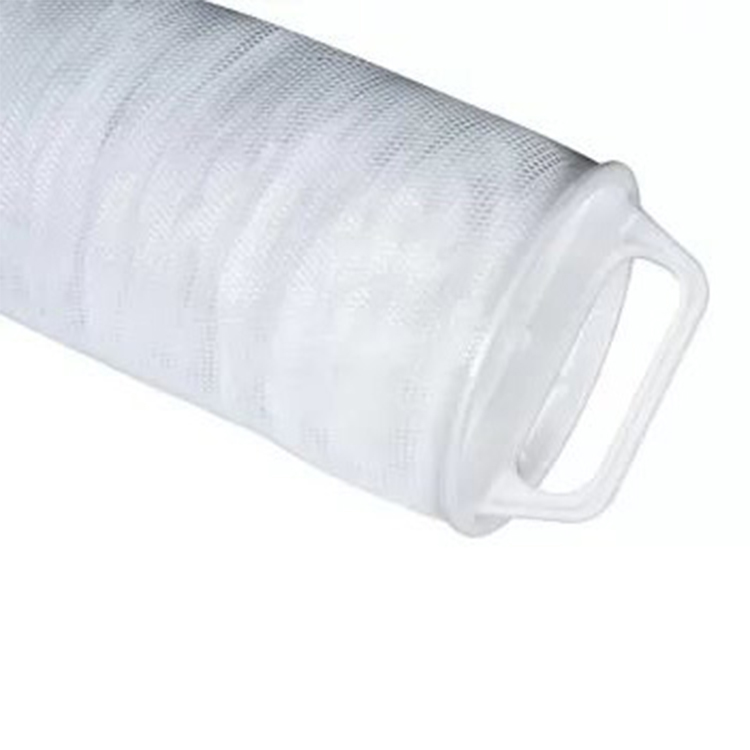

Product Details
