The JinJue Membrane Filter comes in two types: straight-through and head-type. Both types use a membrane made of polymer material for efficient filtration and separation of liquids or gases, removing particles, solids, microorganisms, and other contaminants. These filters are widely used in various fields such as food, pharmaceuticals, chemicals, and biotechnology, ensuring the purity and quality of the products throughout the production process.
This Membrane Filter has several notable features. Firstly, it offers extremely high filtration accuracy, reaching sub-micron levels, which ensures excellent filtration performance. Secondly, the high polymer materials used in the filter are resistant to high temperatures and corrosion, allowing stable operation in various complex production environments without reacting with fluids. Additionally, the filter is made of sanitary-grade polymer materials, guaranteeing the hygiene and safety of the product. Lastly, the filter elements are designed for easy disassembly and cleaning, making operation simple and significantly saving manpower resources.
The JinJue Membrane Filter is widely applied in food and beverage production, the pharmaceutical industry, electronics and semiconductor manufacturing, and wastewater treatment. It ensures the purity of products in food and drug production, meets the high purity requirements in electronics and semiconductor manufacturing, and improves the effectiveness of wastewater treatment.
Typical application areas: Pre-filtration of pure water equipment Filtration of beverages, alcohol, and edible oil Filtration of water for the pharmaceutical industry Filtration of oil products and chemical solutions Purification of industrial fluids such as electroplating solutions and developer solutions

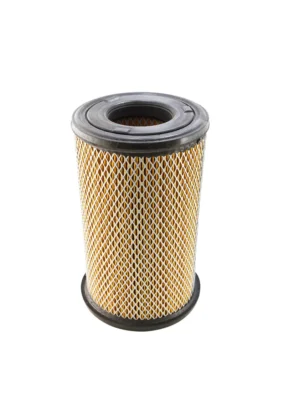

Application areas Engineering machinery (excavators, loaders) Metallurgical equipment hydraulic system Injection molding machine and hydraulic station Various industrial hydraulic system tanks
🧪 Technical parameters (example, actual reference to specific product manual): Parameter Description Model KFI 3310 Structure One-piece molded structure Filter material selection PTFE (polytetrafluoroethylene), PES (polyethersulfone), PP (polypropylene), GF (glass fiber), etc. Filter accuracy Commonly 0.1μm, 0.2μm, 0.45μm, 1μm, 5μm, 10μm, etc. Housing material Polypropylene (PP) or stainless steel housing (depending on the purpose) Length specification 10 inches, 20 inches, 30 inches, 40 inches and other standard lengths (3310 usually means 10 inches) Interface type 226, 222, flat, threaded and other interfaces Maximum operating temperature 80~130°C (depending on the filter material) Maximum working pressure 3~6 bar (determined by the housing and filter material) 🧰 Product features: ✅ One-piece molding design No secondary bonding, eliminating potential leakage risks Enhanced structural integrity and pressure resistance ✅ High filtration efficiency Filter material can achieve deep filtration, with a particle capture rate of up to 99.99% ✅ Good chemical compatibility Can handle acid, alkali, high temperature, solvent fluids ✅ Low pressure difference, long service life Optimized filter material pore structure, fast flow rate, small pressure difference ✅ Support online sterilization and CIP cleaning Suitable for food, pharmaceutical and other fields with high hygiene requirements

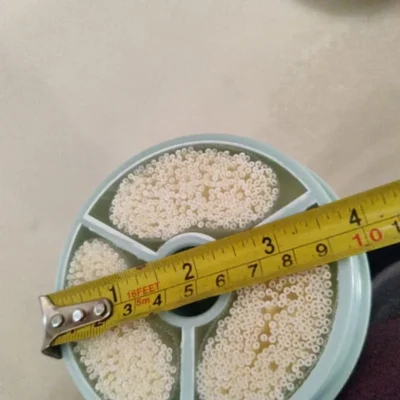

✅ High Filtration Precision – Typically removes particles in the 0.01–0.1 µm range, effectively filtering out bacteria, viruses, and organic matter. ✅ Superior Chemical Resistance – PVDF material resists harsh chemicals, acids, and alkalis, ensuring long-term durability. ✅ High Strength & Durability – Exceptional mechanical strength provides a long service life with minimal membrane fouling. ✅ Hydrophilic Nature – Enhances water permeability and reduces clogging, leading to higher efficiency. ✅ Wide pH Range – Suitable for use in environments with pH 1-13, allowing for versatile industrial and municipal applications. ✅ Low Operating Pressure – Provides high water flux with low energy consumption, reducing operational costs.

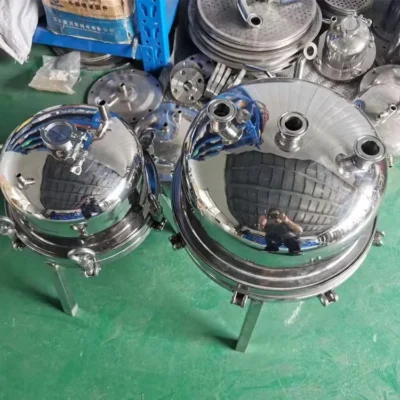

JINJUE Straight-through Membrane Filter is a filter that uses membrane filtration technology. The filter filters and separates liquids or gases through membranes made of polymer materials to remove contaminants such as particles, suspended solids and microorganisms, thereby improving the quality and purity of the liquid or gas.
