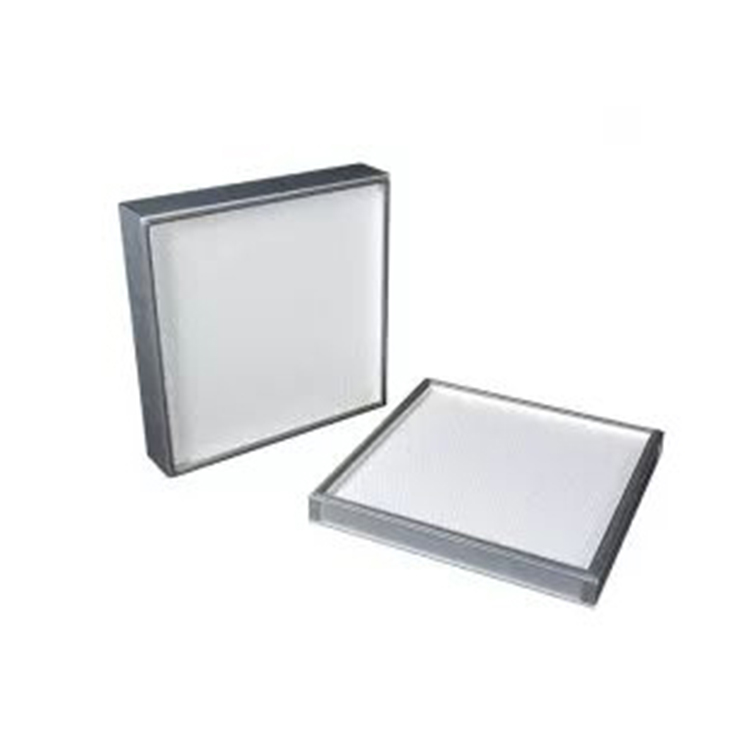

Mini-Pleat PTFE Panel Filters
  • Mini-Pleat PTFE Panel FiltersMini-Pleat PTFE Panel Filters

Mini-Pleat PTFE Panel Filters

JinJue Mini-Pleat PTFE Panel Filters and PTFE ULPA filters are ideal for low noise area, corrosive gas area (especially for hydrofluoric acid) and high clean level area. PTFE membrane as young filter media in China market. Mini-Pleat PTFE Panel Filters are used in HEPA filters and ULPA air filters with stable performance and lower energy consumption. Really suitable for hospitals, sanatoriums, schools and kindergarten, microelectronics industry, sterile room, laboratory etc.

Send Inquiry

Product Description

The Mini-Pleat PTFE Panel Filters are specifically designed for air filtration in low-noise areas, corrosive gas environments, and high-cleanliness zones. Mini-Pleat PTFE Panel Filters effectively filters impurities and pollutants from the air, ensuring a high level of cleanliness and safety in these environments.

Product Features:

1.PTFE Membrane Filtration, Stable Performance
2.Cleanroom Production with Testing Equipment
3.Real-Time Buyer Monitoring of Production Progress

Detailed information of Mini-Pleat PTFE Panel Filters

Type: Mini-pleat, Compact
Frame material: SUS304, Wood, Anodised extruded aluminum
Filter media: PTFE (Polytetrafluoroethylene) membrane
Gasket: PU gasket on both sides
Filter class: HEPA filters (H13/H14), ULPA filters (U15~U17)
Initial resistance: 50~110 Pa
Standard size: 320 x 320mm, 450 x 450mm, 595 x 595mm
Standard depth: 46/70/90/110/150/220/292mm

Material and Operation Conditions

Media Micro glass fifiber/PTFE
Frame Extruded aluminum/ Folding aluminum/ Galvanized steel/ Stainless steel/ MDF
Sealant Double-component polyurethane glue
Gasket PU endless gasket /EVA/ EPDM
Separator Hot melt bead
Optional aluminum frame thickness (mm) 46,50,69,75,78,80,90,96,100,110,120,150((Customized design is available))
Max. Temperature 70℃
Max. Humidity 100%

Technical datasheet

Model Type Material Size(mm)(WxHxD) Air flow(m³/h) Initial pressure(≤Pa) Filteration area(m²) Velocity(m/s) Filteration grade(EN1822-4)
YTGX No separator(W) Fiber glass (BX) 610x305x69 500 90 4.92 0.75 H14

(PTFE) 610x610x69 1000 90 9.84 0.75 H14

915x610x69 1500 90 14.77 0.75 H14

915*610*69 900 90 14.77 0.45 U16
