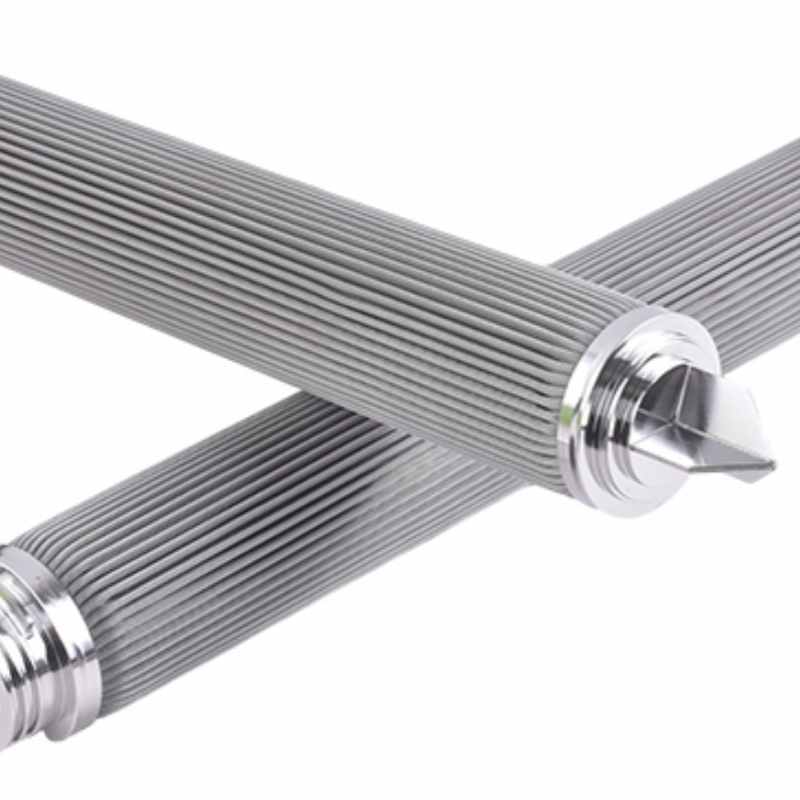

Stainless Steel Pleated Filter Cartridge
Product Overview
This high-performance stainless steel pleated filter cartridge, also named melt filter cartridge, is a professional filtration component designed for industrial precision filtration. Adopting two premium stainless steel filter media—stainless steel woven wire mesh and stainless steel fiber sintered felt—it features excellent chemical and physical stability, and is widely applicable to filtration of polymers, oil-water mixtures, high-temperature gas, pharmaceuticals and other media, meeting the filtration requirements of various harsh working conditions.
Core Filter Media & Performance Characteristics
1. Stainless Steel Woven Wire Mesh Media
Woven from high-quality stainless steel wire, the cartridge has smooth pore channels, easy cleaning, high temperature/corrosion resistance, non-shedding mesh structure and long filtration cycle, suitable for scenarios requiring repeated use and easy maintenance.
2. Stainless Steel Fiber Sintered Felt Media
Made of stainless steel fiber through high-temperature sintering, it is a porous deep filtration material with high porosity, good air permeability, strong dirt-holding capacity and excellent regenerability, effectively improving filtration efficiency and reducing replacement frequency.
Key Technical Parameters
|
Item |
Specification |
|
Filtration Area |
5–10 times that of ordinary cylindrical filter cartridges |
|
Filtration Precision |
1–300μm (customizable according to demand) |
|
Main Filter Media |
Stainless steel woven wire mesh / Stainless steel fiber sintered felt |
|
Material Grade |
304/316/316L stainless steel (optional for different corrosion resistance requirements) |
|
Connection Modes |
Standard interfaces (222/220/226), quick-connect interface, threaded connection, flange connection, tie rod connection, custom special interface |
|
Temperature Resistance |
≤200℃ (304) / ≤260℃ (316/316L) |
|
Pressure Resistance |
0.6–1.6MPa (working pressure, customizable for high pressure demand) |
|
Applicable Medium |
Macromolecular polymers, oil-water mixtures, high-temperature gas, pharmaceuticals, beverages, chemical solvents, industrial gas, etc. |
|
Sealing Material |
Silicone rubber / EPDM / Viton (optional, food-grade available) |
Main Application Fields
Petrochemical Industry – Pre-filtration of reverse osmosis water systems, deionized water systems; filtration of petrochemical raw materials and solvents
Food & Beverage Industry – Filtration of beverages, alcohol, mineral water, purified water, edible oil and other food-grade media (food-grade material optional)
Chemical Industry – Filtration of chemical solvents, fine chemicals, inks, coatings and other chemical media
Pharmaceutical Industry – Filtration of liquid medicines, pharmaceutical raw materials, pharmaceutical water and sterile gas
Gas Industry – Filtration of compressed air, nitrogen, carbon dioxide and other industrial protective gas
Polymer & Environmental Engineering – Filtration of macromolecular polymer melt; oil-water separation and wastewater treatment in environmental engineering
Mechanical & Electrical Industry – Filtration of hydraulic oil, lubricating oil and cooling water in mechanical equipment
