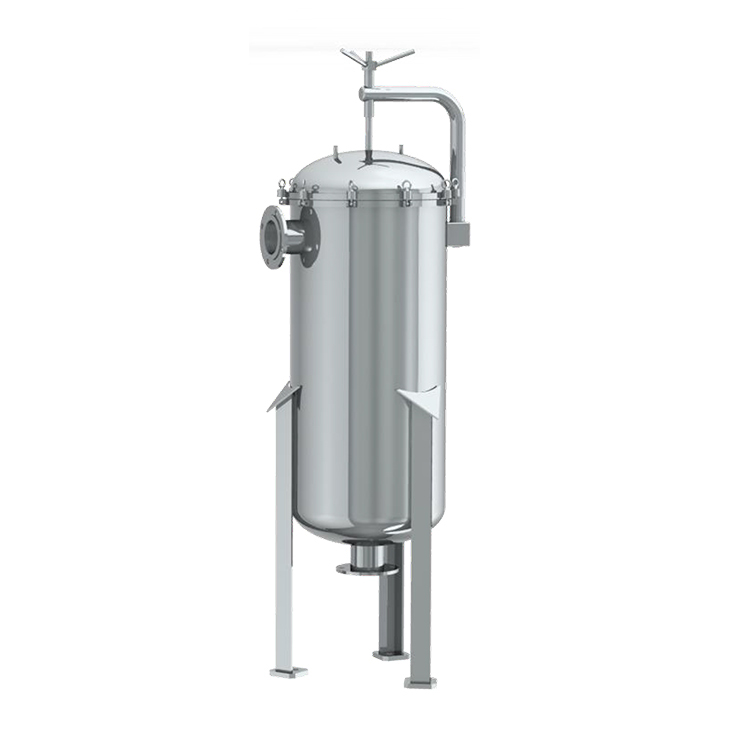

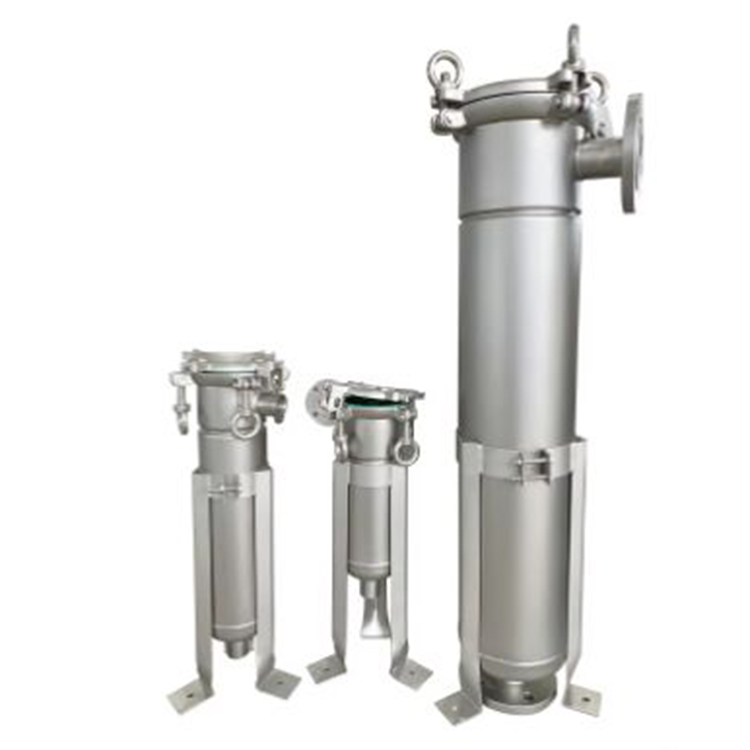

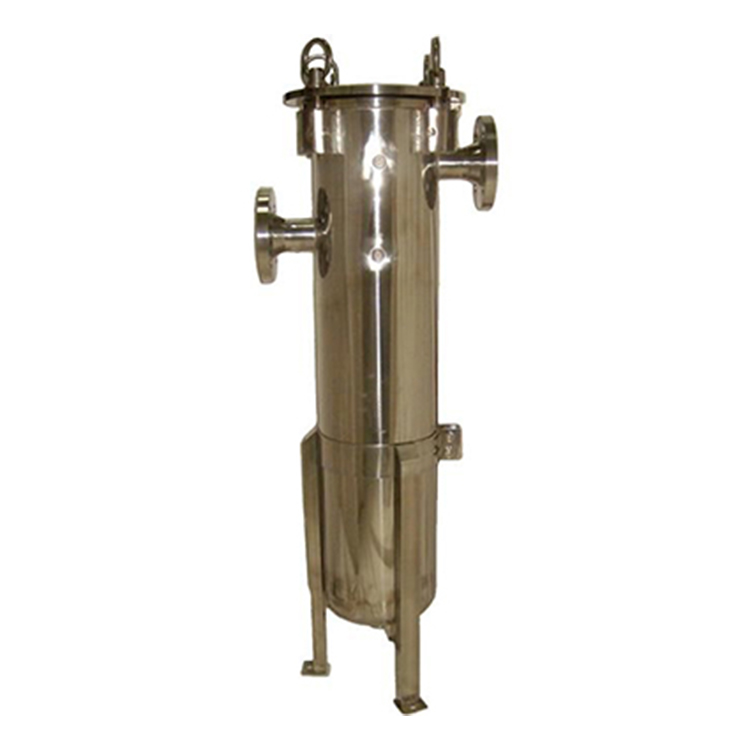

Single Bag Filter

58 Views

With low pressure loss, long service life, and minimal maintenance, single bag filters are ideal for industrial environments requiring efficient filtration.

Contact Now

Live Chat

Inquiry Basket

Category: Automatic Or Manual Washable Filter,Cartridge Bag Filter,Cascading Filters,Corrosion Resistant Filter,Gas Filter,Industrial Grade Filter,Membrane Filter,Sanitary Filter

Product descriptions

The working principle of Single Bag Filter: When the liquid enters the filter from the outside of the filter bag, the large particles of impurities are trapped on the outside by the filter bag, and the pure liquid flows out from the outlet of the bag filter. The filter bag can be reused because the material of the bag is different to adapt to different flow rates and filtration precisions, and the pressure loss during the filtration process is also small, with a long service life and low maintenance cost. Single bag filters are very suitable for some production and industrial environments in terms of filtration efficiency, ease of use and maintenance.

Some Parameters of Single Bag Filter

Internal and external surface treatment	polishing/sandblasting/painting
Polishing	Inner surface Ra ≤ 0.6 μ m, outer surface Ra ≤ 0.8 μ m
Sandblasting/painting	inner surface Ra ≤ 0.6 μ m, outer surface sandblasting/painting

Material of Single Bag Filter

Filter housing	SUS304, SUS316L,Carbon steel,2205 stainless steel
Exhaust&Discharge&Pressure Gauge	SUS304, SUS316L
Quick installation bolt group	SUS304
Support	SUS304, carbon steel
Gasket	Silicone, fluororubber, EPDM, PTFE, fluorine coated
Note: (Carbon steel material surface does not undergo polishing treatment)

Operating Conditions of Single Bag Filter

Design pressure	Working temperature
≤ 0.6Mpa	≤90 ℃

Connection Form of Single Bag Filter

Barrel connection	Quick installation bolt group
Import and export	Flange/quick fit chuck
Exhaust valve	G1/2”
Drainage valve	G1/2”(Determined by the number of cores)
Pressure gauge	M14 * 1.5/Quick fit chuck/flange

Selection Table of Single Bag Filter

Number of filter elements	Filter bag model	inlet and outlet connection method	inlet and outlet size	filter material	filter element interface type	sealing ring	Form
01	Bag 1 (1)	Flange F/chuck K	32	SUS304（T）	Steel ring (G)	Silicone (S)	Spray coating（PT）
	Bag 2 (2)			SUS316L(S)	Plastic ring (P)	Fluorine glue (V)
	Bag 3 (3)			Carbon steel (C)	Tie rope (S)	EPDM (E)
	Bag 4 (4)					Nitrile (D)
	Bag 5 (5)

Selection table

Number of filter elements Filter	element length	Inlet and outlet size	Inlet and outlet size	Filter material	Filter element interface type	Sealing ring	form
01	Bag No. 1（1）	Flange F/Chuck K	32	SUS304（T）	Steel Rims(G)	Silica gel(S)	（PT）
	Bag No. 2 （2）			SUS316L(S)	Plastic ring(P)	Fluorine rubber（V）
	Bag No. 3（3）			Carbon Steel（C）	Rope（S）	EPDM（E）
	Bag No. 4（4）					Nitrile（D）
	Bag No. 5（5）
