PP Pleated Filter CartridgesBSF Series Pleated Filter Cartridges are back washable, designed especially for using in power plant condensate water.The purity polypropylene material construction ensures a most widely chemical campatibility. Large surface area and low pressure drop increase filters'......
Removal Rating:
0100=1μm, 0400=4μm, 1000=10μmSealing Material:
S=Silicone, E=EPDM, B=NBR, V=FKMEnd Cap Type:

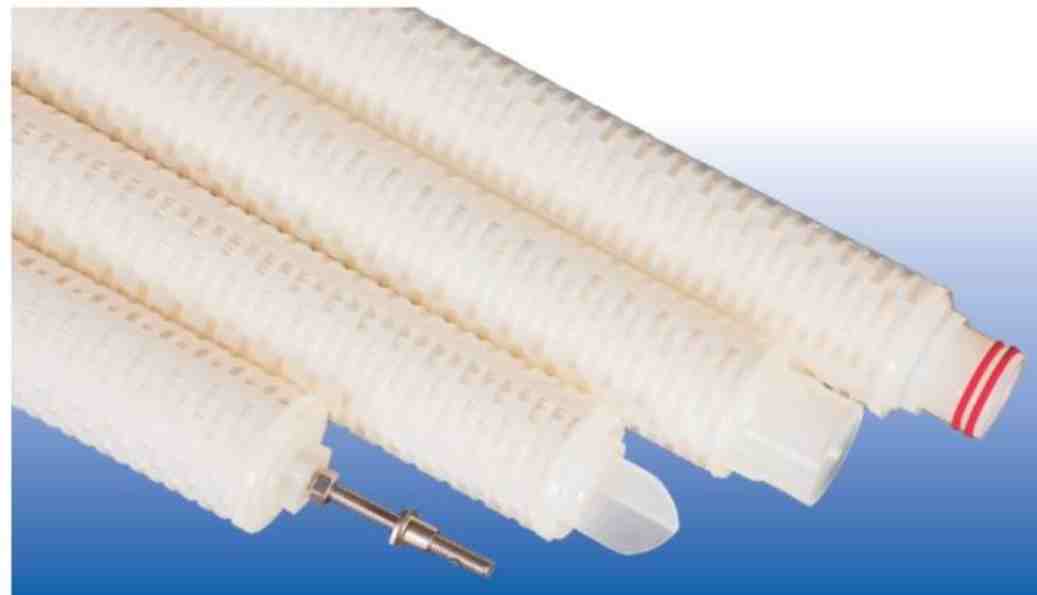

T=M8 Thread, W=3/8"-16 ThreadPP Pleated Filter Cartridges
BSF Series Pleated Filter Cartridges are back washable, designed especially for using in power plant condensate water.
The purity polypropylene material construction ensures a most widely chemical campatibility. Large surface area and low pressure drop increase filters' life, lengthening back washable cycles.
1.Applications
Seawater desalination
Steel mill water treatment
Nuclear condensate polishing
Fossil condensate polishing
2.Dimension
Outer Diameter：66mm , 69mm
Length：40”, 50”, 60” , 70”
3.Material of Construction
Media : Polypropylene
Support : Polypropylene
Connection Type: Thread
4.Performance
Max. Operating Temperature :82℃(179.6°F)
Max. Operating DP:2.8 bar (41psi)@ 65℃(149°F)
5.Quality
Manufactured in a clean room environment
Manufactured according to ISO9001:2015 certified
6.Features
Backflushable filter, longer life
Multiple layers, high dirt holding capacity
All polypropylene construction ensures a wide chemical
compatibility
Absolute construction, high effeciency of particle removal
