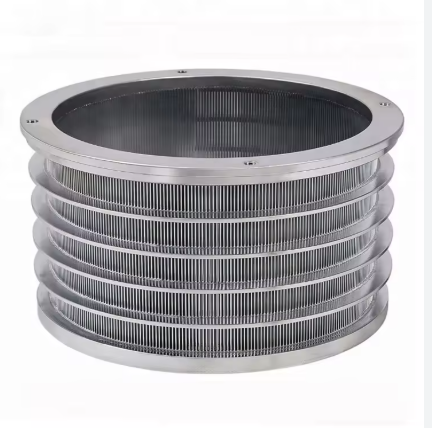

Outflow pressure baskets are categorized by pulp flow pattern. Rotating wings rotate within the basket, allowing the pulp to flow naturally from the trough, resulting in high-quality pulp for various applications. They can be used in many areas of the pulp and paper production line. The key considerations for pressure baskets are their position during operation and the desired user outcome. The overall structure and grade bars are then designed to ensure operational strength, yield, and quality.
Outflow pressure baskets are categorized by pulp flow pattern. Rotating wings rotate within the basket, allowing the pulp to flow naturally from the trough, resulting in high-quality pulp for various applications. They can be used in many areas of the pulp and paper production line. The key considerations for pressure baskets are their position during operation and the desired user outcome. The overall structure and grade bars are then designed to ensure operational strength, yield, and quality.
Inflow pressure screen baskets are categorized by pulp flow pattern, but inflow pressure is divided into rotary blade and internal rotary blade. The external rotary blade internal flow pressure screen features a rotary blade located outside the screen. When it is activated, heavy impurities in the pulp are thrown out due to centrifugal force. At the same time, due to the small mass, the fiber is located close to the screen. With this feature, it has the characteristics of rarely clogging the pulp, low wear, and moderate filter performance.
Material: Stainless steel;
Type: Wedge wire;
Flow configuration: Outward flow basket;
Screen slot size: 0.30 mm;
Inner diameter: 500 mm;
Package size: 560 x 560 mm;
Height: 500 mm;
Chrome plated; 250 micron
