I.Core Positioning

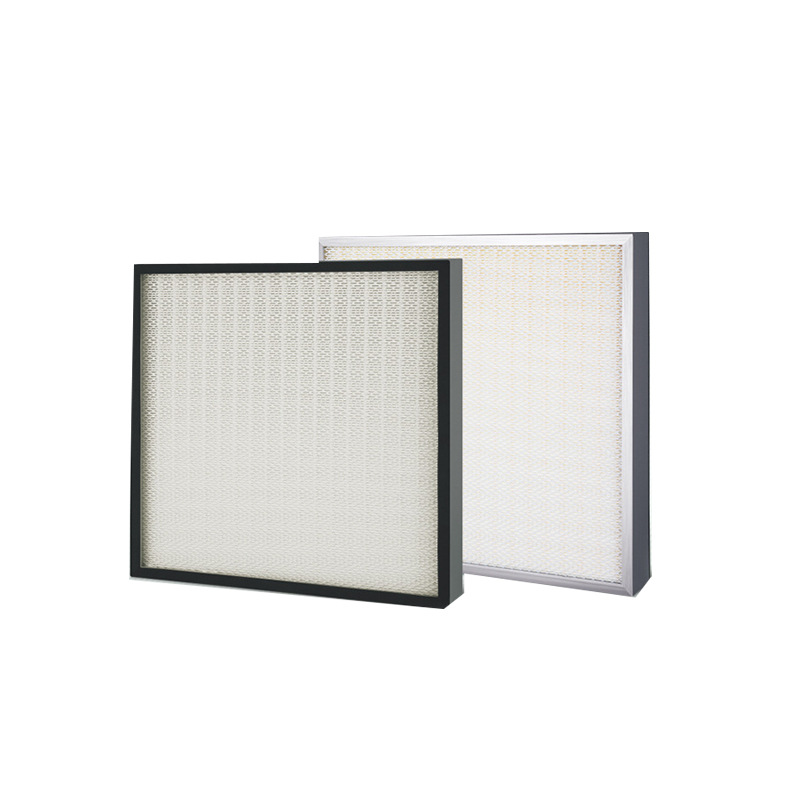

A high-performance air filtration product compliant with EN 1822 standard, the H13 Mini-Pleated HEPA Filter (Glass Fiber Frame Type) features a compact structure and superior filtration efficiency. It’s designed for precision air purification in cleanrooms (ISO Class 5-7), medical facilities, electronics factories, and other high-demand environments, effectively capturing fine particles to ensure air quality meets strict standards.
II.Key Features
Top-tier Filtration Efficiency: H13 efficiency grade, achieving ≥99.97% filtration rate for particles ≥0.3μm (MPPS efficiency ≥99.95%), effectively removing dust, bacteria, aerosols, and other contaminants.
Mini-Pleated & Space-Saving Design: Adopts mini-pleated technology with glass fiber filter media, maximizing filtration area within a compact footprint. Compared with traditional separated HEPA filters, it saves 30%+ installation space while maintaining excellent air permeability.
Durable Glass Fiber Media: High-quality borosilicate glass fiber filter paper offers large dust-holding capacity (≥150g/m²) and stable performance, resistant to high temperature (up to 80℃) and humidity (≤90% RH), ensuring long service life.
Rigid Frame Structure: Integrated glass fiber frame (or galvanized steel frame optional) provides strong structural support, preventing deformation during transportation and installation. Equipped with polyurethane foam gasket for tight sealing, minimizing air leakage (leakage rate ≤0.01%).
Low Resistance & Energy-Saving: Optimized pleat design reduces initial resistance (≤220Pa@rated air volume), lowering HVAC system energy consumption and extending fan service life.
III.Applications
Ideal for air purification systems in:
Cleanrooms (ISO Class 5-7): Electronics manufacturing, semiconductor factories, precision machinery workshops.
Medical & Healthcare: Operating rooms, pharmaceutical production lines, sterile laboratories.
High-end Commercial & Industrial: Data centers, food processing facilities, HVAC terminal purification.
IV.Quality Assurance
Complies with EN 1822:2019 and ISO 14644 standards, with complete certification documents (MPPS test report, DOP/PAO leak test certificate).
Undergoes strict quality inspection before shipment, including efficiency testing, resistance measurement, and seal integrity verification.
Supports customization of size (length × width × height), frame material (glass fiber, galvanized steel, aluminum alloy), and gasket type to meet specific project requirements.
