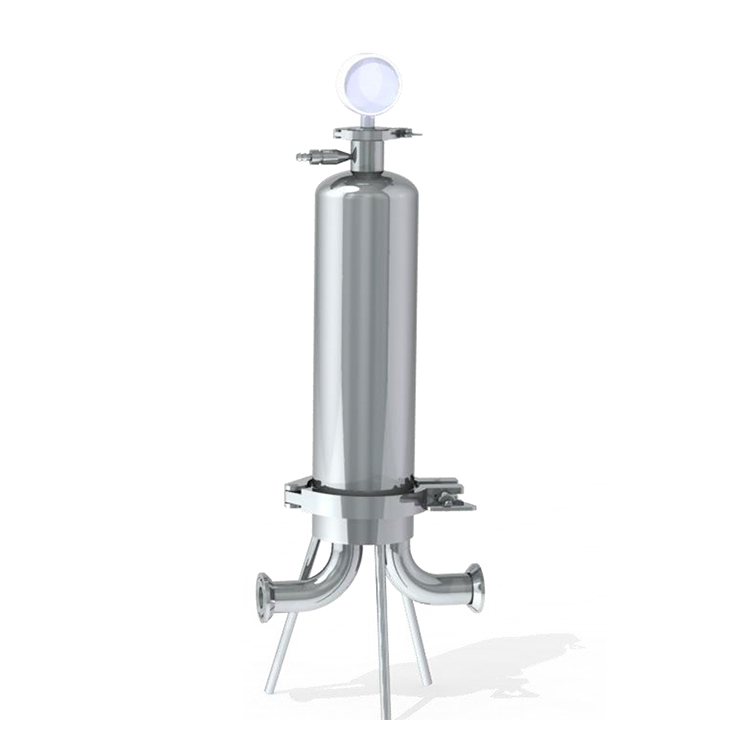

Multi-Core Gas Filter

46 Views

Operating at ≤0.6Mpa and ≤80°C, these filters support online or 121°C sterilization, ensuring hygienic environments in medical and chemical settings.

Contact Now

Live Chat

Inquiry Basket

Category: Automatic Or Manual Washable Filter,Cartridge Bag Filter,Cascading Filters,Corrosion Resistant Filter,Gas Filter,Industrial Grade Filter,Sanitary Filter

Product descriptions

The filter elements of multi-core gas filters may come in many forms, such as bag type, activated carbon and HEPA filters, etc. Each material is designed for different gas pollutants and needs. Activated carbon and HEPA filters can effectively remove odors and harmful substances, while bag filters can filter solid particles and pollutants.

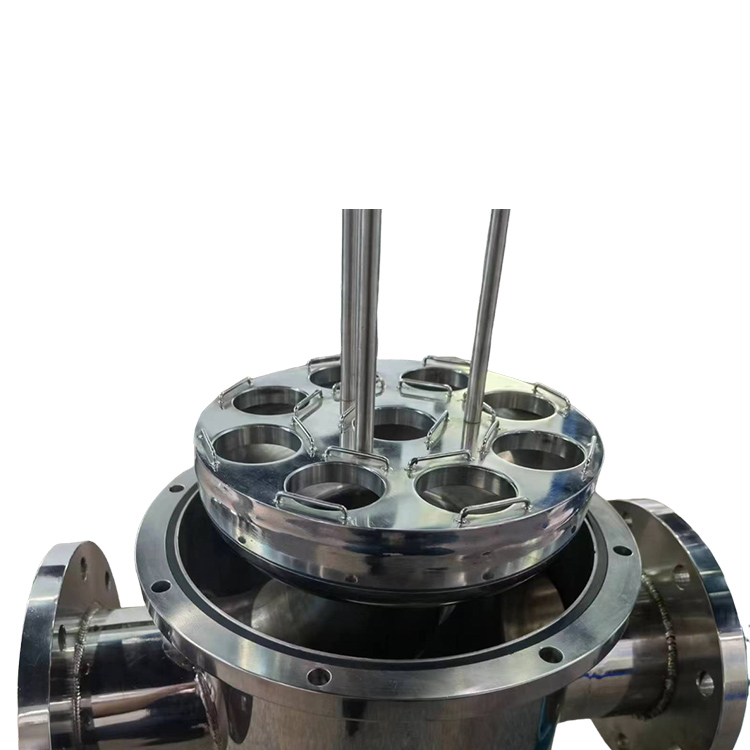

These filter elements are generally assembled in a sealed cylindrical structure, and the gas is filtered when passing through the cylinder to achieve the purpose of purifying the air. Multi-core gas filters are widely used in pharmaceuticals, food and beverages, electronics, semiconductors, chemicals, painting and spraying and other industries. They can effectively ensure safe production and hygienic environment in industrial production, laboratories and medical fields.

Polishing parameters of Multi-Core Gas Filter

Internal and external surface treatment	Polished
Polishing type	Mirror polished
Polishing accuracy	inner surface Ra≤0.38μm, outer surface Ra≤0.8μm

Material of Multi-Core Gas Filter

Filter housing	SUS304, SUS316L
Drainage port & pressure gauge port	SUS304, SUS316L
Bolt	SUS304
Support	SUS304
Gasket	silicone, EPDM, fluorine rubber

Operating Conditions of Multi-Core Gas Filter

Design pressure	Working temperature	Sterilization
≤ 0.6Mpa	≤80 ℃	online or sterilization cabinet 121C/30min

Connection Form of Multi-Core Gas Filter

Barrel connection	flange
Import and export	flange/quick release chuck
Pressure gauge	M14*1.5
Drainage valve	G1/2” (determined by the number of cores)

Selection Table of Multi-Core Gas Filter

Number of filter elements	length of filter element	Inlet and outlet connection method	inlet and outlet size	filter material	filter element interface type	sealing ring
01	10	Flange F	32	SUS304（T）	226(6)	Silicone (S)
				SUS316L(S)	M30(M30)	Fluorine glue (V)
						EPDM (E)
						Nitrile (D)
