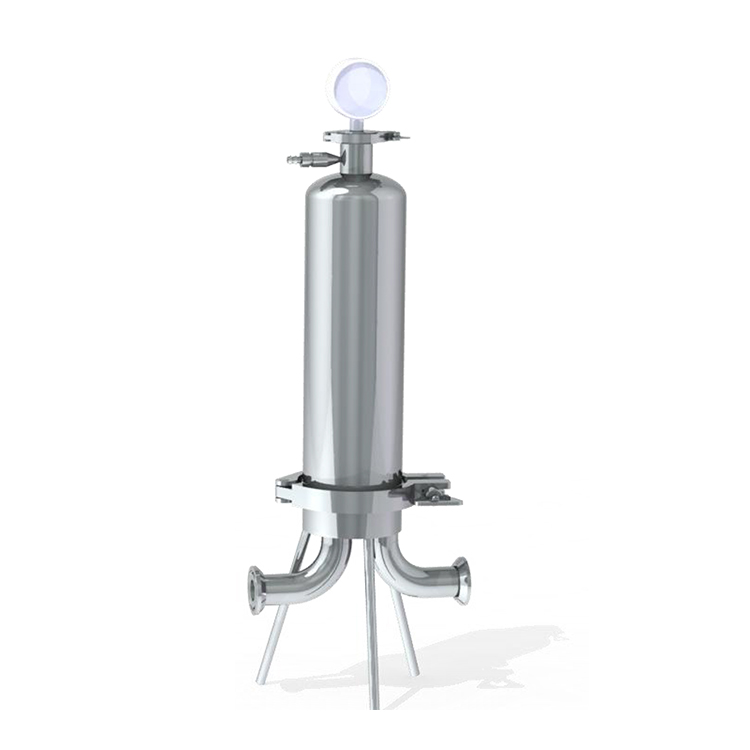

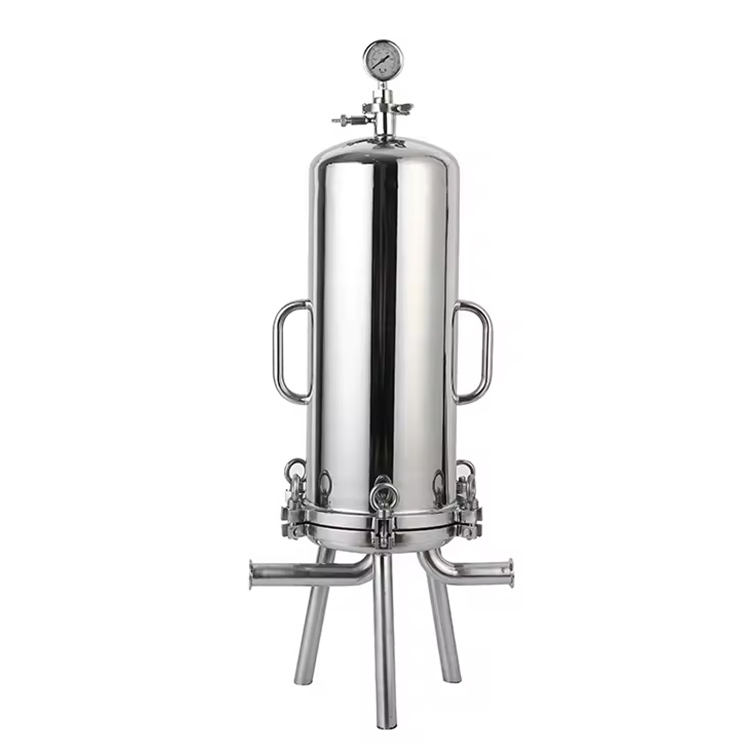

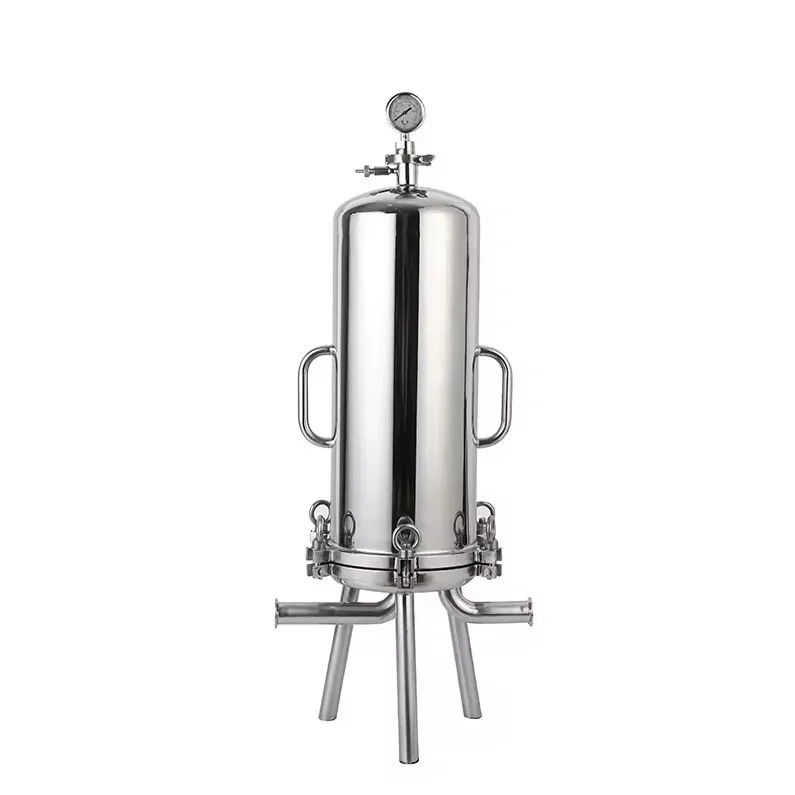

Single Core Gas Filter

72 Views

For food and beverage industry, it filters dust and impurities from air, operating at ≤80°C and supporting online or cabinet sterilization at 121°C/30min.

Contact Now

Live Chat

Inquiry Basket

Category: Automatic Or Manual Washable Filter,Cartridge Bag Filter,Cascading Filters,Corrosion Resistant Filter,Gas Filter,Industrial Grade Filter,Membrane Filter,Sanitary Filter

Product descriptions

Application of Single Core Gas Filter

1. Laboratory: usually used for gas filtration protection of laboratory instruments and equipment.
2. Pharmaceutical industry: Single-core gas filters can remove particles, bacteria and odors, thereby ensuring the hygiene, quality and safety of the manufacturing process and products.
3. Food and beverage industry: Used to filter dust and impurities in the air to protect the production process and quality of food and beverages.
4. Chemical industry: Single-core gas filters can remove a large number of tiny particles and odors in the air, thereby ensuring the smooth progress of chemical reactions.

Polishing parameters of Single Core Gas Filter

Internal and external surface treatment	Polished
Polishing type	Mirror polished
Polishing accuracy	inner surface Ra≤0.38μm, outer surface Ra≤0.8μm

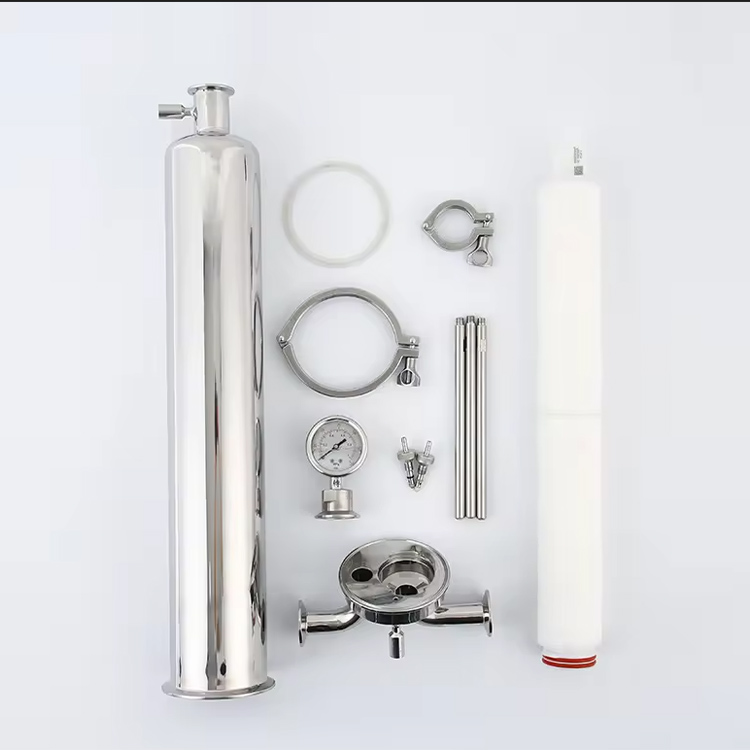

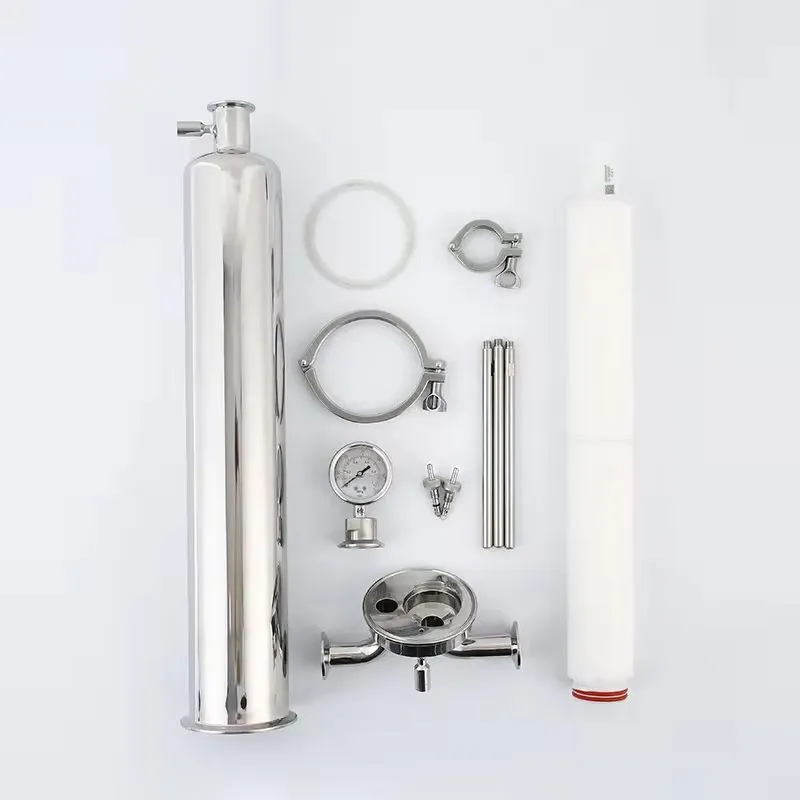

Material of Single Core Gas Filter

Filter housing	SUS304, SUS316L
Drainage port & pressure gauge port	SUS304, SUS316L
clamp/bolt	SUS304
Support	SUS304
Gasket	Silicone, EPDM, fluorine rubber

Operating Conditions of Single Core Gas Filter

Design pressure	Working temperature	Sterilization
≤ 0.6Mpa	≤80 ℃	online or sterilization cabinet 121C/30min

Connection Form of Single Core Gas Filter

Barrel connection	quick clamp/Bolt set
Import and export	flange/quick release chuck
Pressure gauge	M14*1.5
Drain valve	G1/2”

Selection Table of Single Core Gas Filter

Number of filter elements	length of filter element	inlet and outlet connection method	inlet and outlet size	filter material	filter element interface type	sealing ring
01	10	Flange F/chuck K	32	SUS304（T）	226(6)	Silicone (S)
				SUS316L(S)	M30(M30)	Fluorine glue (V)
						EPDM (E)
						Nitrile (D)
