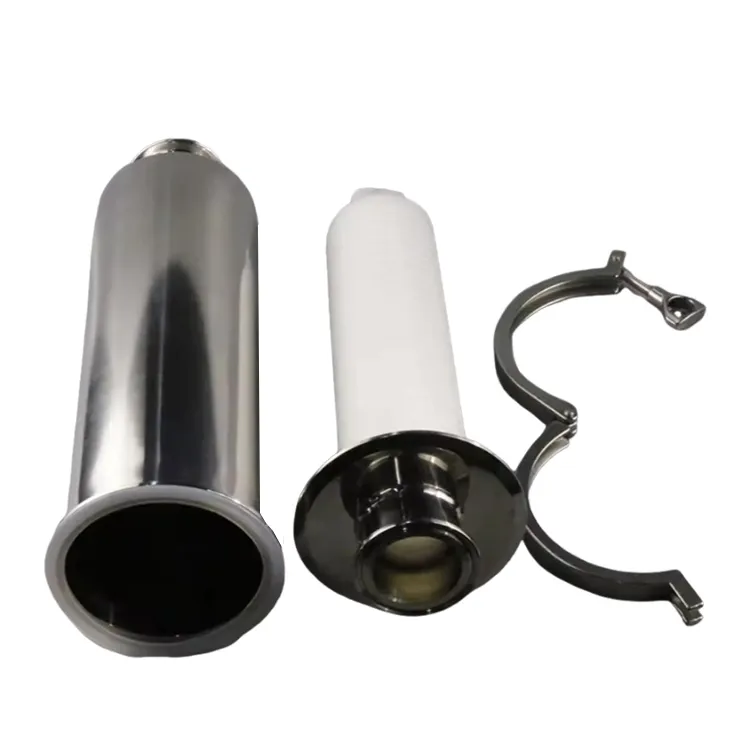

Pipe Sanitary Filter

106 Views

This compact filter features a lightweight, space-saving design with polished mirror surfaces (Ra≤0.38μm inside), ideal for tight installations.

Contact Now

Live Chat

Inquiry Basket

Category: Automatic Or Manual Washable Filter,Cartridge Bag Filter,Cascading Filters,Corrosion Resistant Filter,Gas Filter,Industrial Grade Filter,Sanitary Filter

Product descriptions

Characteristics of Pipe Sanitary Filter

1. Health and safety: The pipeline sanitary grade filter is made of stainless steel material, polished, and has a smooth inner and outer surface without protrusions or pores, which will not retain or contaminate the filter medium, ensuring its health and safety.
2. Efficient filtration: The pipeline sanitary grade filter adopts a reasonable filter element structure and filtration accuracy inside, which can effectively filter impurities and particles in the medium to ensure the cleanliness and hygiene safety of the medium.
3. Wide applicability: Pipeline sanitary grade filters can be applied to the filtration of liquid or gas media, and their filtration accuracy and filter material can be customized according to specific needs, making them very suitable for applications in food, beverage, pharmaceutical and other fields.
4. Compact structure: The pipeline sanitary grade filter has a small volume, light weight, compact structure, and does not take up too much space, making it easy to maintain and install.
5. Easy to clean and replace: The filter element of the pipeline sanitary grade filter can be disassembled, cleaned or replaced, making it convenient for daily maintenance and management.

Polishing parameters of Pipe Sanitary Filter

Internal and external surface treatment	Polished
Polishing type	Mirror polished
Polishing accuracy	inner surface Ra≤0.38μm, outer surface Ra≤0.4μm

Material of Pipe Sanitary Filter

Filter housing	SUS304, SUS316L
Exhaust port & sewage outlet	SUS304, SUS316L
Clamp	SUS304
Gasket	silicone, fluorine rubber, EPDM

Operating Conditions of Pipe Sanitary Filter

Design pressure	Working temperature	Sterilization
≤ 0.6Mpa	≤80 ℃	online or sterilization cabinet 121C/30min

Connection Form of Pipe Sanitary Filter

Barrel connection	quick clamp
Import and export	flange/quick release chuck
Exhaust valve	inner hole 4mm, connected to 8mm PU pipe
Drainage valve	inner hole 4mm, connected to 8mm PU pipe

Selection Table of Pipe Sanitary Filter

Number of filter elements	length of filter element	inlet and outlet connection method	inlet and outlet size	filter material	filter element interface type	sealing ring
01	10	Flange F/chuck K	32	SUS304（T）	222(2)	Silicone (S)
				SUS316L(S)	226(6)	Fluorine glue (V)
					215（5）	EPDM (E)
					M30(M30)	Nitrile (D)
