Perforated plate composite mesh filter element is a new type of filter material that is made of a standard material (stainless steel 304 or 316L) perforated plate and several layers of square hole mesh (or dense mesh) sintered together.

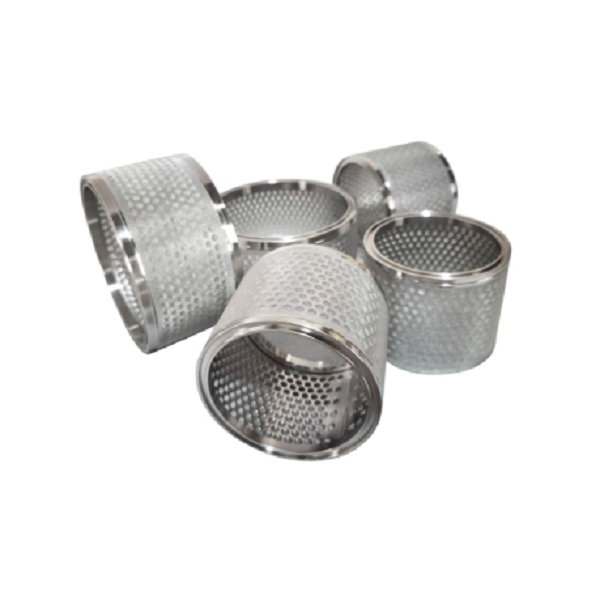

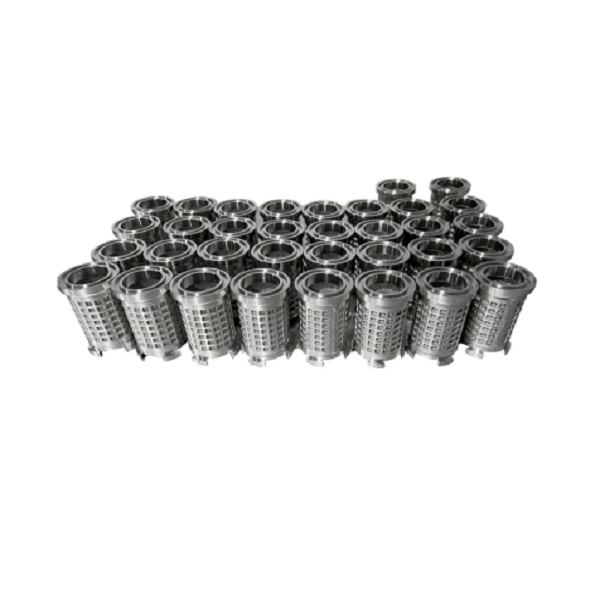

Perforated plate composite mesh filter element
Product introduction
Perforated plate sintered mesh is a new type of filter material that is made of a standard material (stainless steel 304 or 316L) perforated plate and several layers of square hole mesh (or dense mesh) sintered together. The perforated plate can be selected in different thicknesses according to needs, and the flat woven mesh can be one or more layers. Due to the support of the perforated plate, the composite mesh has high compressive strength and mechanical strength. The two are sintered together to have both the good air permeability of the flat woven mesh and the mechanical strength of the porous plate. It can be processed into cylindrical, disc, sheet, and conical filters, and is widely used in water treatment, beverage, food, metallurgy, chemical and pharmaceutical industries, etc.
Product Features
1. Good rigidity and high mechanical strength. Due to the support of the perforated plate, it has extremely high mechanical strength and compressive strength among sintered meshes;
2. High filtration accuracy, the filtration accuracy range is 1μ-100μ, and it has reliable filtration performance;
3. Easy to clean, the surface filtration is adopted, which is particularly suitable for backwashing;
4. Not easy to deform, the mesh shape is fixed, the gap size is uniform, and there is no blind hole; 5. Corrosion-resistant and high-temperature resistant, it can withstand a high temperature of 480℃.
Product parameters:
Filtration accuracy: 1-100um, other accuracy can be customized according to the requirements of the buyer; Material: 316L/304 (Monel alloy, 904L, C276, 2205, 2507, etc. need to be customized); Size: customized according to the technical requirements of the buyer;
Applicable temperature: -200℃~600℃, normal temperature 480℃, instantaneous high temperature 600℃; Connection method: flange, thread, quick card, pull rod, standard (such as 222, 226, etc.) Other special interfaces can be customized according to the requirements of the buyer; Filtration direction: divided into two types: from outside to inside and from inside to outside.
