Stainless copper fiber sintered felt is made from extremely fine stainless steel fibers (diameter accurate to microns) through a non-woven process, stacked, and then sintered at high temperatures. The finished felt features layers of varying pore sizes, creating a pore gradient that can be controlled to achieve extremely high filtration accuracy and a greater dirt holding capacity.
Sintered Felt
Product Description:

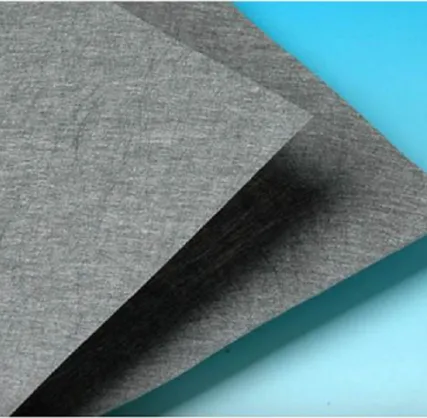

Stainless copper fiber sintered felt is made from extremely fine stainless steel fibers (diameter accurate to microns) through a non-woven process, stacked, and then sintered at high temperatures. The finished felt features layers of varying pore sizes, creating a pore gradient that can be controlled to achieve extremely high filtration accuracy and a greater dirt holding capacity. Its triple-pile, porous structure offers high porosity, a large surface area, and a uniform pore size distribution, ensuring continuous filtration across the entire filter surface.Due to the above structure and characteristics, stainless steel sintered felt can effectively make up for the weaknesses of metal mesh that are easy to clog and damage, and can make up for the shortcomings of powder filtration products that are fragile and have small flow rates. It has the characteristics of heat resistance and pressure resistance that ordinary filter paper and cloth cannot match. Therefore, stainless steel fiber sintered felt is an ideal high-temperature resistant, corrosion-resistant, and high-precision filter material.
Product Specifications:
Standard Dimensions: 1000mm x 500mm,
1000mm x 600mm,
1000mm x 1000mm,
1200mm x 1000mm;
Maximum Dimensions: 1480mm x 1000mm;
Standard Material: SUS316L;
Dimensions within the above range can be customized according to user requirements.
Main Applications:
1. Large dirt holding capacity, high wave-passing accuracy, slow pressure rise, and long replacement cycle;
2. High porosity and excellent permeability, low pressure loss, and high flow rate;
3. Corrosion and high-temperature resistance, including resistance to acids, alkalis, organic solvents, and chemicals, capable of long-term use in environments up to 480°C;
4. Easy to process, form, and weld;
5. Reinforced, thickened, with mesh, and other specifications can be manufactured to meet customer requirements.
Product Applications:
Stainless steel sintered felt has excellent filtering performance and is an ideal high temperature resistant, corrosion resistant, high precision filtering material. It is widely used in high molecular polymer filtration, petrochemical, electronic high temperature gas dust removal, filtration in oil refining process, viscose filtration, pre-filtration of ultrafiltration, vacuum pump protection filter, filter membrane support, catalyst carrier, automobile airbag, aircraft and ship fuel filtration, and hydraulic system filtration.
