Panel Type Chemical Air Filters

JinJue Panel Type Chemical Air Filters is designed for removing odors same as others chemical air filters. Much lower initial pressure drop comes from special design --- honeycomb activate carbon combines with synthetic fibre. Activate carbon can adsorb odors, meanwhile synthetic fibre can filter particles upto 10 micron.

Send Inquiry

Product Description

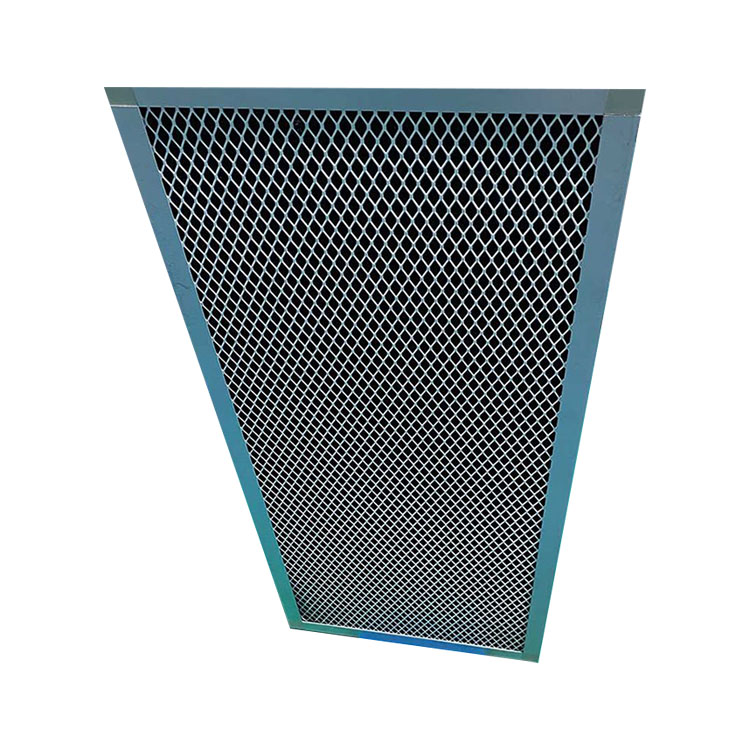

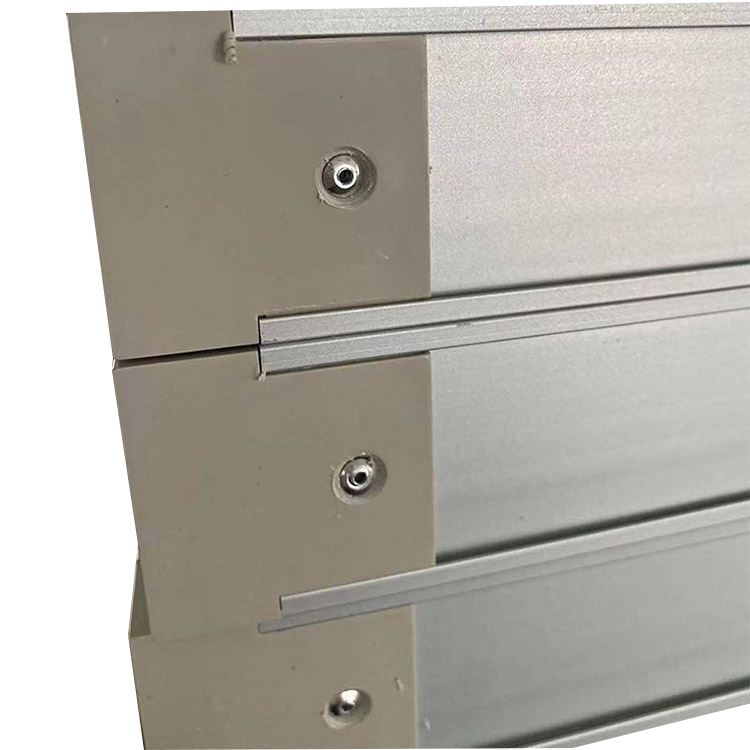

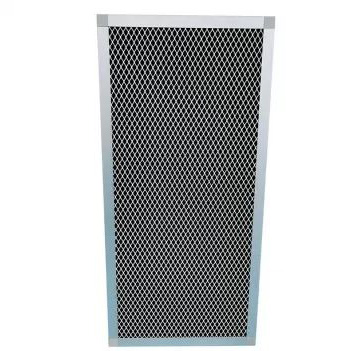

The panel-type chemical filter adopts aluminum alloy material as the product framework, with steel mesh fixed on both sides for support. The filtering material consists of honeycomb activated carbon and synthetic fibers. The product is non-toxic, odorless, highly breathable, and has low air resistance. Additionally, it is exceptionally easy to install and has a long service life. Before leaving the factory, 100% of the products undergo testing, ensuring quality assurance. Buyers can also monitor the progress in real-time through surveillance cameras, guaranteeing on-time delivery.

Product Features

Benefits of panel-type chemical filter:
1. Easy installation
2. High strength
3. 100% test before package

Benefits of our factory:
1. Buyer can monitor working schedule in real time
2. Complete set testing devices
3. Clean workshop

Detailed information of Panel Type Chemical Air Filters:

Type Panel, disposable
Frame material Aluminum alloy
Filter media Synthetic fibre / Activated carbon
Protective net expaned metal net on both sides
Filter class G1/G2
Initial pressure drop 20Pa
Standard size 596 x 596mm, 592 x 490mm, 490 x 287mm
Standard depth 25/46mm

Product Details
