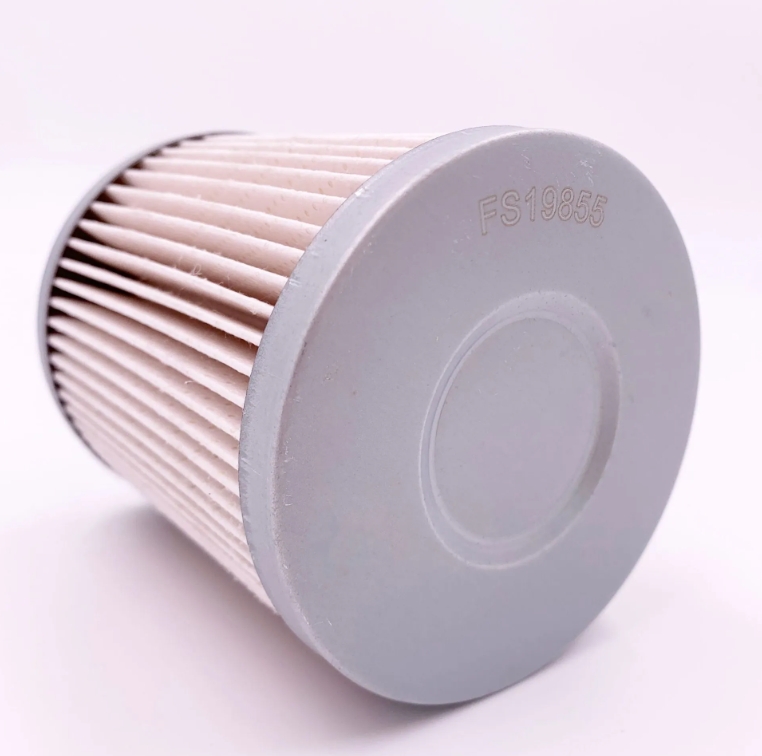

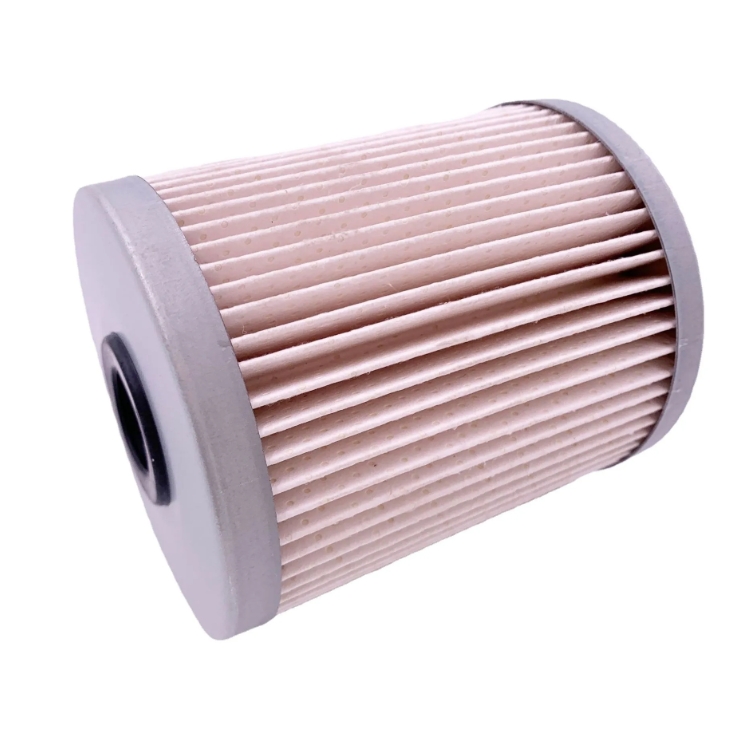

The Jinjue High Quality Fuel Water Separation Filter element FS19855 is made in Hebei, China. It's new, weighs 0.2 kg, and has a 1 - year warranty. Ideal for fuel filtration, it offers customization. Priced from $15.00 per piece (10+), with free shipping for 1 piece.
1. Advanced Filtration Technology:
- Multi-Stage Filtration: Combines coalescing and separation layers to effectively remove water droplets, sediment, and microscopic contaminants (down to 5 microns).
- High Water Separation Efficiency: Achieves over 95% water removal to prevent corrosion, injector damage, and microbial growth in fuel systems.
- Durable Construction: Reinforced glass fiber/synthetic media ensures long-lasting performance under high-pressure conditions.
1. Robust Design Features:
- Corrosion-Resistant Housing: Made from coated steel or polymer composites for resistance to harsh chemicals, moisture, and temperature fluctuations (-30°C to +120°C).
- Seal Integrity: Precision-fit gaskets and O-rings prevent leaks and ensure airtight performance.
- Easy Maintenance: Hassle-free replacement with standardized thread/snap-on connections for quick installation.
1. Application Versatility:
- Compatible Systems: Suitable for diesel engines, generators, tractors, marine engines, and industrial machinery.
- OEM Compatibility: Matches specifications for major brands (e.g., Caterpillar, Cummins, John Deere).
- Fuel Types: Works with diesel, biodiesel blends, and low-sulfur fuels.
1. Technical Specifications:
- Part Number: FS19855
- Filtration Rating: 5 microns (absolute)
- Burst Pressure: ≥ 8 bar (116 psi)
- Max Flow Rate: 60 liters per minute
- Dimensions: 220mm (H) x 120mm (OD)
1. Benefits:
- Engine Protection: Reduces wear on pumps, injectors, and combustion chambers.
- Fuel Efficiency: Maintains optimal fuel flow and combustion quality.
- Cost Savings: Extends maintenance intervals and lowers repair costs.
1. Compliance & Certifications:
- Meets ISO 16332 and SAE J1488 standards for water separation.
- ROHS-compliant materials for environmental safety.
1. Packaging & Service Life:
- Individually boxed with anti-corrosion wrapping.
- Service Life: Up to 500 hours or 12 months (varies with fuel quality and operating conditions).
