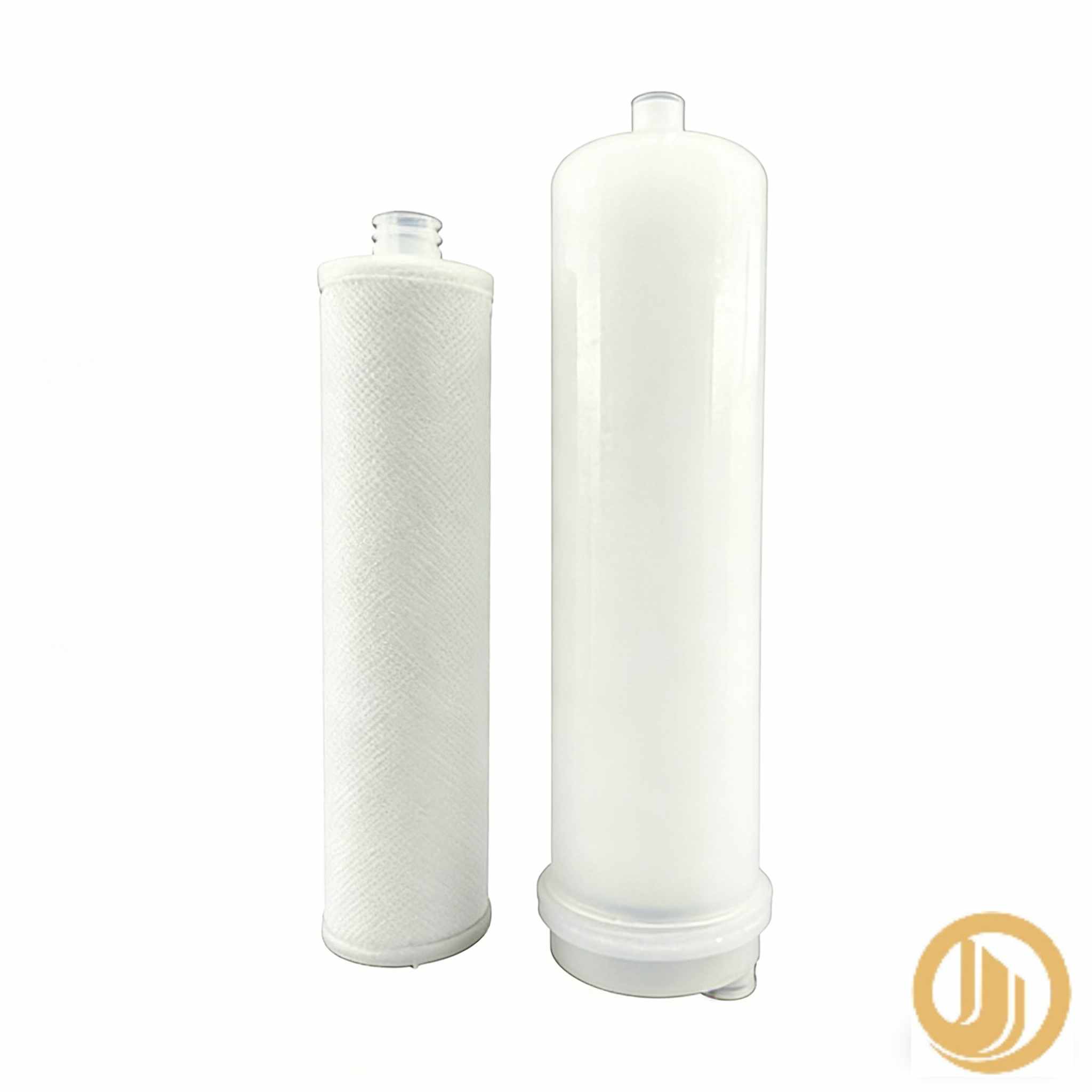

Depth Wound Filter Cartridges
Depth Wound Filter Cartridges are manufactured by precision winding multi-layer polypropylene (PP) filter media, with optional custom materials available to meet specific process requirements. The unique gradient structure—with fiber pore size gradually decreasing from outer to inner layers—delivers efficient filtration while maximizing dirt-holding capacity, significantly extending service life.
Featuring full polypropylene construction, these cartridges offer excellent chemical compatibility, making them ideal for most solvent and chemical filtration applications. Designed for liquids with high particle loads and wide particle size distribution, they excel in removing gels and solid impurities during pre-filtration stages.
They are widely used in lithium battery production, adhesive processing, fine chemicals, inks, and pure water systems, providing reliable protection for downstream precision filtration processes.
I.Key Features:
Gradient winding structure with large filtration area and high dirt-holding capacity
Long service life and stable performance
Full PP construction for broad chemical compatibility
Multiple precision ratings, lengths and end connections available for customization
II.Specifications:
|
Material: |
Polypropylene (PP), custom materials optional |
|
Length: |
10" / 20" |
|
End Connections: |
DOE / 226 / 222 |
|
Micron Ratings: |
1μm, 5μm, 10μm, 20μm, 50μm, 75μm, 100μm, 120μm |
|
Max. Operating Temperature: |
60℃ |
|
Typical Applications: |
Lithium battery processing, adhesives, fine chemicals, inks, water purification |
