Multi-Layer Pleat Filter Cartridge

41 Views

With corrugated design and varying pore sizes, this filter cartridge ensures high filtration area and minimal detachment risk for heavy oil slurry and beverage

Contact Now

Live Chat

Inquiry Basket

Category: Mesh Pleated Filter Cartridge,Mesh Sintered Filter Cartridge,Powder Sintered Filter Cartridge,Stainless Steel Filter Cartridge

Product descriptions

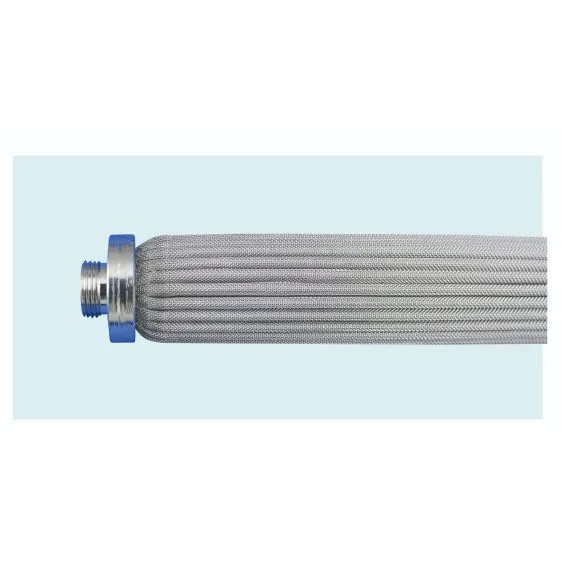

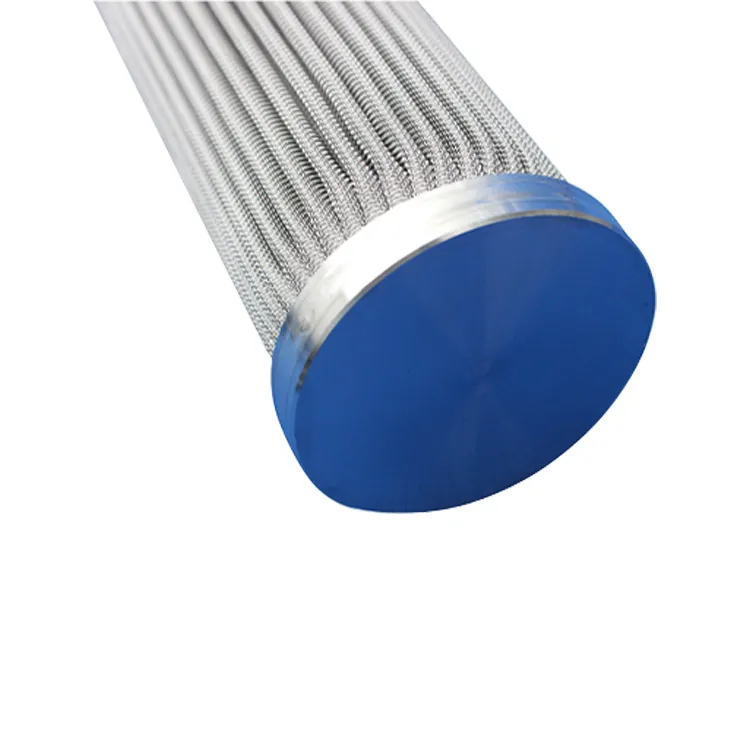

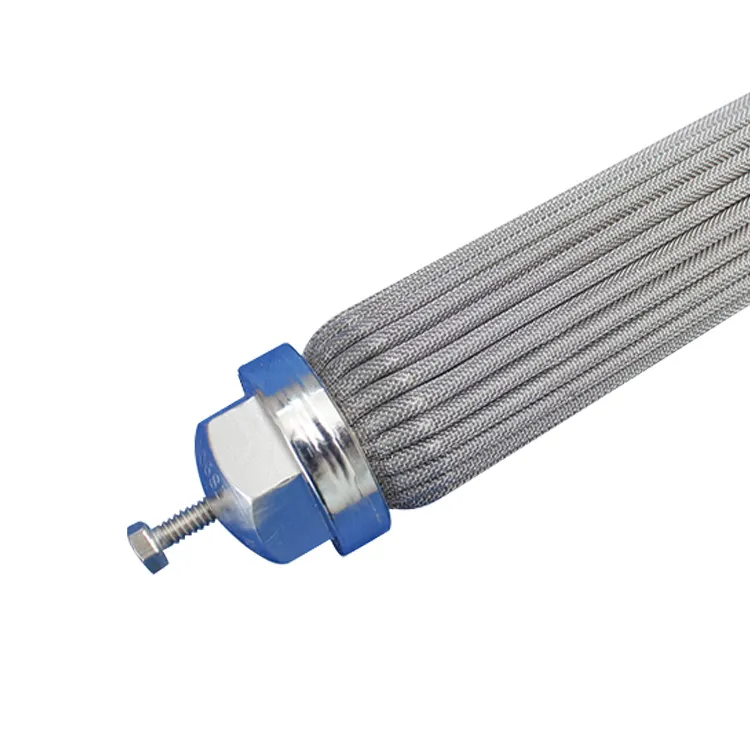

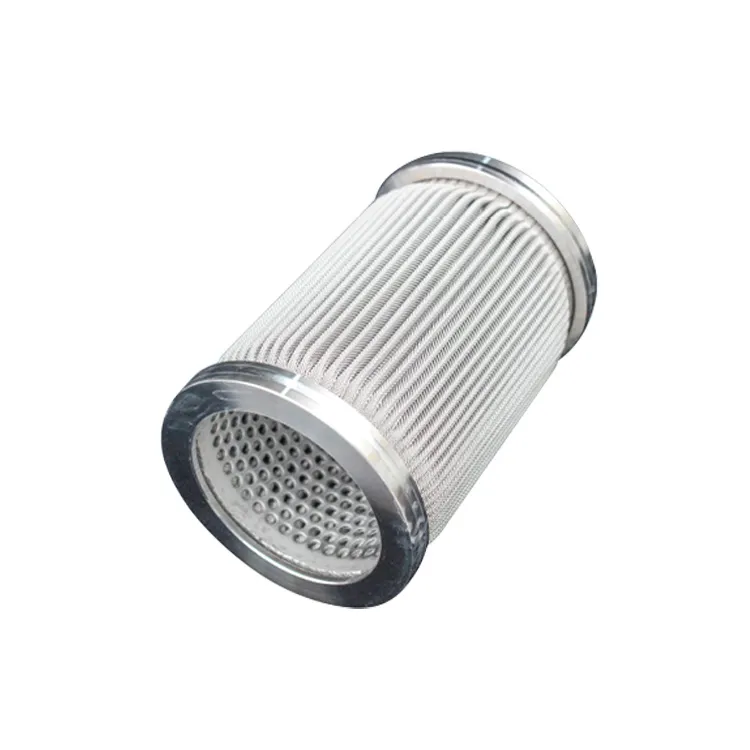

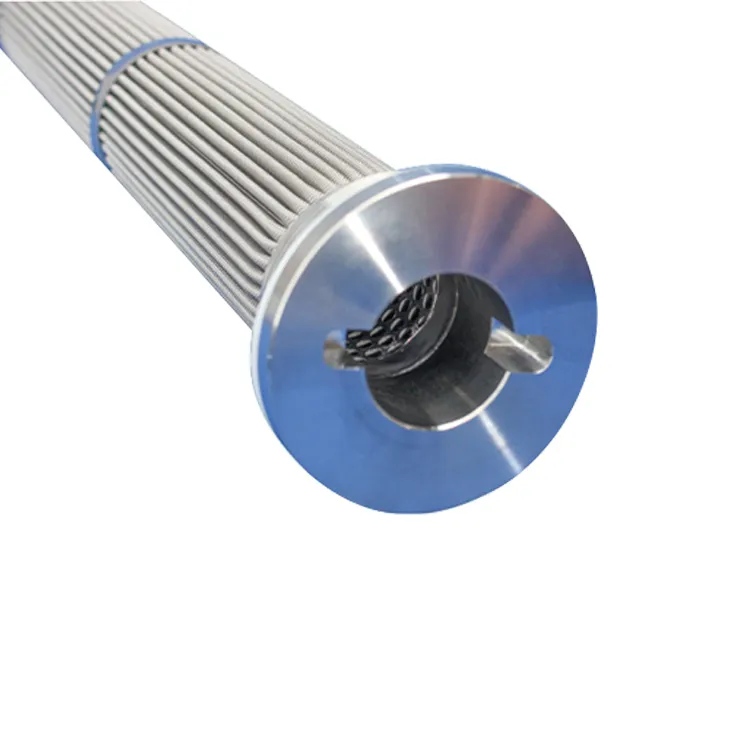

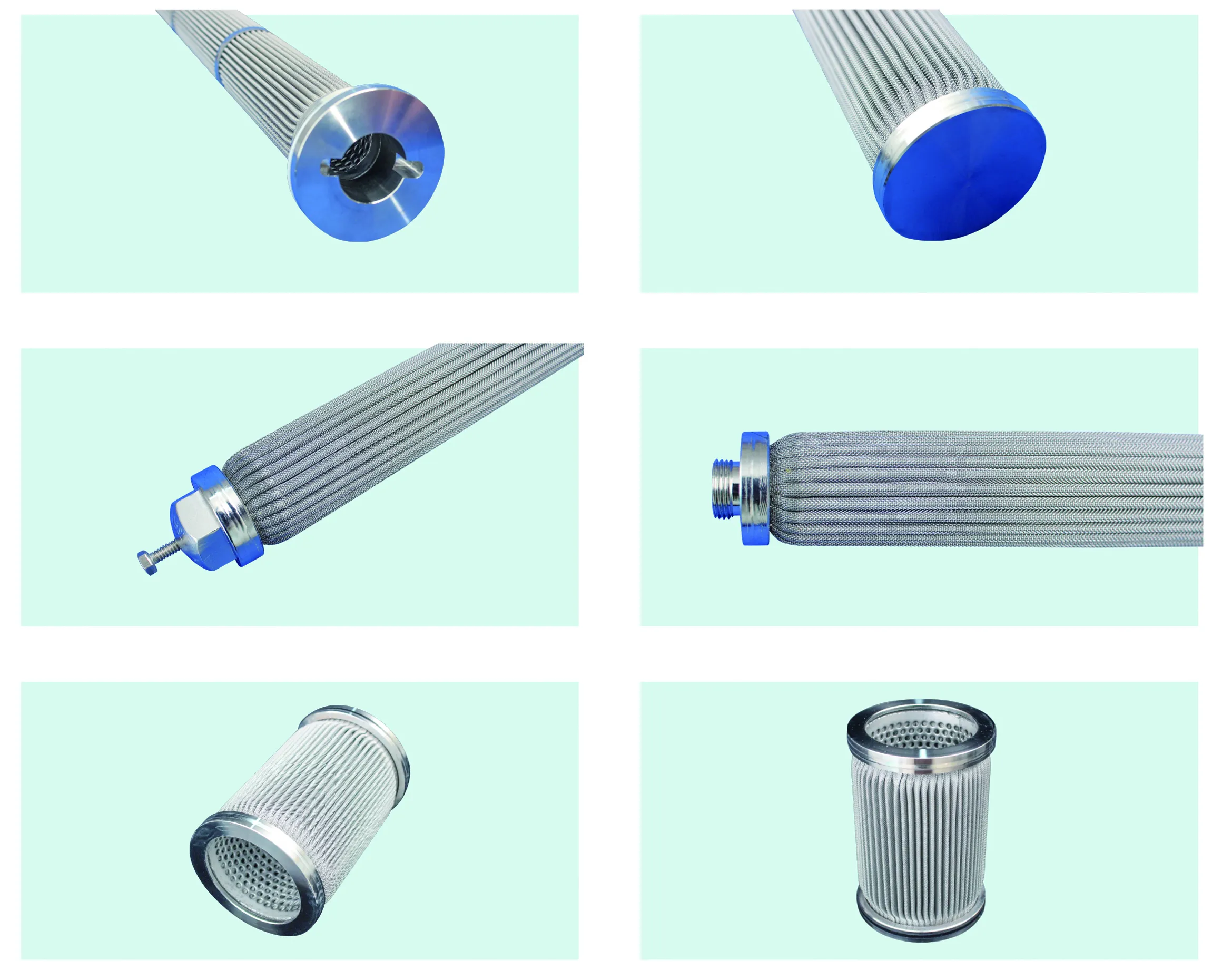

The Multi-Layer Pleat Filter Cartridge is typically constructed from either sintered stainless steel fiber felt or stainless steel woven mesh, which is then processed into a corrugated shape. The Multi-Layer Pleat Filter Cartridge felt can be manufactured in multiple layers with varying pore sizes, resulting in high contaminant carrying capacity and excellent porosity. On the other hand, stainless steel woven mesh is produced using different diameter stainless steel wires to make the filter element, which provides strength, easy-cleaning, large filtration area, good permeability, and minimal risk of detachment.

Application of Multi-Layer Pleat Filter Cartridge

The Multi-Layer Pleat Filter Cartridge is a versatile filter element that can be used for different purposes such as filtration and purification of polymer melt in the chemical fiber and film industry, filtration and purification of high-temperature, corrosive liquids or gases in chemical engineering, precision filtration of electric hydraulic oil and lubricating oil, clarification filtration of liquids in medicine, biology, and beverage industry, as well as dust filtration of heavy oil slurry in the refinery. This filter cartridge offers a reliable solution to remove unwanted impurities and particles, ensuring smooth and efficient processes for different applications across diverse industries.

Technical Parameter of Multi-Layer Pleat Filter Cartridge

Model	Nominal micron(um)	Bubble pressure point (Pa)	Gas permeaton(min/cm2/1000Pa)	Porosity(%)	Dust capacity(mg/cm2)	THK (mm)
SJZ 5	5	6500	35	75	5	0.5
SJZ 7	7	5000	55	75	6	0.5
SJZ 10	10	3700	100	79	7	0.5
SJZ 15	15	2450	140	78	9	0.5
SJZ 20	20	1900	260	77	15	0.5
SJZ 25	25	1500	320	76	21	0.5
SJZ 30	30	1200	480	75	26	0.5
SJZ 40	40	950	650	77	35	0.5
SJZ 60	60	650	1100	77	38	0.5
Note: Micron and the dust capacity shall be tested according to the provisions of GB/T18853-2002. The bubble point pressure is tested according to GB/T5249. The permeability is tested according to GB /T53453, pressure difference is 200Pa, the medium is air.

Order Information of Multi-Layer Pleat Filter Cartridge

Code	Type	Material	Micron (μm) (nominal)	Size (inch)	End cap	Sealing ring material
YTZD	Sintered felt	T(304)	1-100	OD*Length	Flange Thread	Silicone
	Sintered mesh	S(316L)			Interface	EPDM
	Wire mesh	Sx(duplex steel)			222	Vtion
		M(Monel)			226
