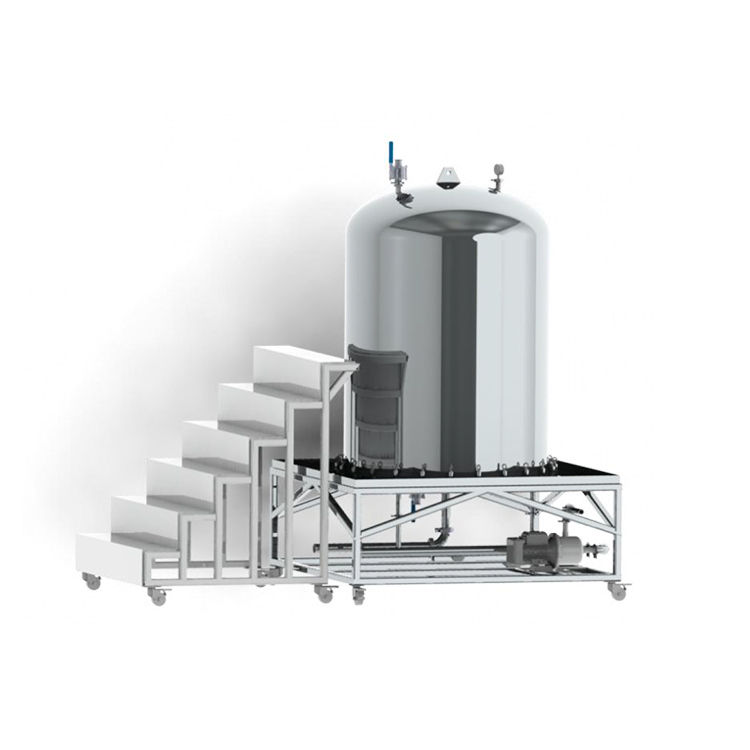

Cartridge Cascade Filter

46 Views

Made from SUS304 or SUS316L, the filter features mirror-polished surfaces and operates at pressures up to 0.6 MPa and temperatures to 90°C.

Contact Now

Live Chat

Inquiry Basket

Category: Automatic Or Manual Washable Filter,Cartridge Bag Filter,Cascading Filters,Corrosion Resistant Filter,Gas Filter,Industrial Grade Filter,Membrane Filter,Sanitary Filter

Product descriptions

In a multi-stage filter, the output of the previous filter serves as the input of the next filter. Unlike ordinary cascade filters, Cartridge Cascade Filter increases filtering capacity by connecting multiple cartridges in parallel. These cartridges can have different filtering characteristics and pore sizes to provide a more powerful filtering effect.

Cartridge stack filters are commonly used in industrial applications such as water treatment, petrochemicals, food manufacturing and other fields. It can effectively remove different pollutants such as suspended matter, sediment, particles, grease, etc., thereby improving water quality, liquid quality, and reducing equipment damage and maintenance costs.

Some Parameters of Cartridge Cascade Filter

Internal and external surface treatment	polishing
Polishing type	mirror polishing
Polishing accuracy:	inner surface Ra ≤ 0.38 μ m, outer surface Ra ≤ 0.4 μ m

Material of Cartridge Cascade Filter

Filter housing	SUS304, SUS316L
Exhaust&Discharge&Pressure Gauge	SUS304, SUS316L
Clamp	SUS304
Support	SUS304, carbon steel
Gasket	Silicone, fluororubber, EPDM, PTFE, fluorine coated

Operating Conditions of Cartridge Cascade Filter

Design pressure	Working temperature	Sterilization:
≤0.6Mpa	≤90 ℃	online or sterilization cabinet 121 ℃/30min

Connection Form of Cartridge Cascade Filter

Barrel connection	Quick installation bolt group
Import and export	Flange/quick fit chuck
Exhaust valve	G1/2”
Drainage valve	quick fit chuck
Pressure gauge	quick fit chuck

Selection Table of Cartridge Cascade Filter

Filter membrane area	Number of filter membrane layers	Filter membrane diameter	inlet and outlet connection method	filter material	sealing ring	Sealing ring
1 ㎡	500	400	Flange F/chuck K	32	SUS304（T）	Silicone (S)
					SUS316L(S)	Fluorine glue (V)
						EPDM (E)
						Nitrile (D)
						Tetrafluoroethylene (CP)

Selection table

Filter area	Number of filter layers	Filter diameter	Inlet and outlet connection method	Inlet and outlet size	Filter material	Sealing ring
1 ㎡	500	400	Flange F/Chuck K	32	SUS304（T）	Silica gel(S)
					SUS316L(S)	Fluorine rubber（V）
						EPDM（E）
						Nitrile（D）
						PTFE（CP）
