Candle Filter

54 Views

With materials like SUS304 and SUS316L, candle filters feature polished or sandblasted surfaces, supporting durable performance and easy maintenance for diverse

Contact Now

Live Chat

Inquiry Basket

Category: Automatic Or Manual Washable Filter,Cartridge Bag Filter,Cascading Filters,Corrosion Resistant Filter,Gas Filter,Industrial Grade Filter,Membrane Filter,Sanitary Filter

Product descriptions

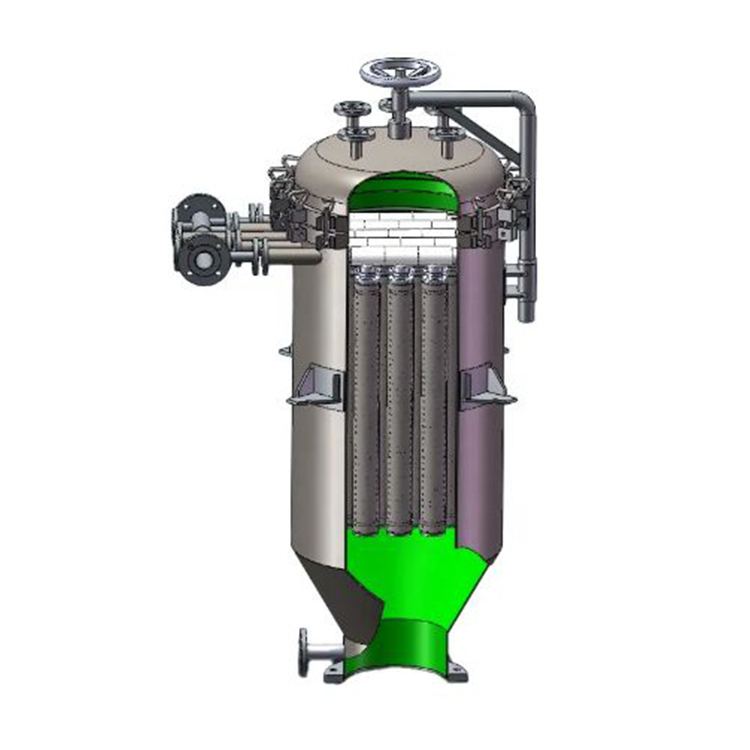

The working principle of Candle Filter is to let the liquid flow into the filter tube from the side or top, then pass through the mesh structure of the inner wall of the filter element, and finally discharge from the bottom or side. The filter membrane formed on the inner wall surface of the filter element can separate and capture particles or other pollutants in the solution or suspension. When the retention of the filter element reaches a certain level, the filter element can be cleaned by a cleaning device to remove dirt and accumulation on the surface of the filter element and restore the filtering capacity of the filter element.

Candle Filters are usually used in liquid processing fields such as beverages, chemicals, food, and pharmaceuticals. Because it can be used for different filtering tasks by replacing filter elements of different sizes and mesh sizes, it is widely used in industry and laboratories.

Candle Filter Features

Candle Filte is suitable for filtering flocs and large particles of non-viscous media. The filter cake is in dry powder after being pressed and dried. There is no leakage or evaporation of pollutants. It meets environmental protection requirements and can be directly used for subsequent waste treatment. The filter can be designed as manual/automatic type.

Some Parameters of Candle Filter

Type	Mirror polishing/painting/sandblasting
Polishing	Inner surface Ra ≤ 0.6 μ m, outer surface Ra ≤ 0.8 μ m
Sandblasting/painting	inner surface Ra ≤ 0.6 μ m, outer surface sandblasting/painting

Material of Candle Filter

Filter housing	SUS304, SUS316L
Exhaust&Discharge&Pressure Gauge	SUS304, SUS316L
Support	SUS304
Flange mirror	SUS304
Gasket	Silicone, fluororubber, EPDM, PTFE,
Candle type filter cartridge frame	SUS304, SUS316L
Filter material types	polypropylene, polyester, anti-static polyester

Operating Conditions of Candle Filter

Design pressure	Working temperature	Gas source pressure P	Cleaning fluid pressure P
≤0.6Mpa	≤100 ℃	0.4Mpa ≤ P ≤ 0.6Mpa	P ≤ 0.4Mpa

Connection Form of Candle Filter

Barrel connection	Quick installation bolt group
Import and export	Flange
Exhaust valve	Flange
Overpressure reflux port	Flange
Pressure gauge	Flange/M14*1.5

Selection Table of Candle Filter

Filter area	Filter element material	inlet and outlet connection method	filter material	Filter material	Filter interface type	Sealing ring	Jacket
1 ㎡	Polypropylene (BL)	Flange F	32	SUS304（T）	M20(M20)	Silicone (S)	J
	Polyester (DL)			SUS316L(S)	M30(M30)	Fluorine glue (V)
	Anti static polyester (DF)					Tetrafluoro (F)
	Nylon (NL)					Nitrile (D)

Selection table

Filter area	Number of filter layers	Filter diameter	Inlet and outlet connection method	Inlet and outlet size	Filter material	Sealing ring	Jacket
1 ㎡	Polypropylene (BL)	Flange F	32	SUS304（T）	M20(M20)	Silicone rubber (S)	J
	Polyester (DL)			SUS316L(S)	M30(M30)	Fluorine rubber (V)
	Antistatic polyester (DF)					PTFE (F)
	Nylon (NL)					Nitrile (D)
